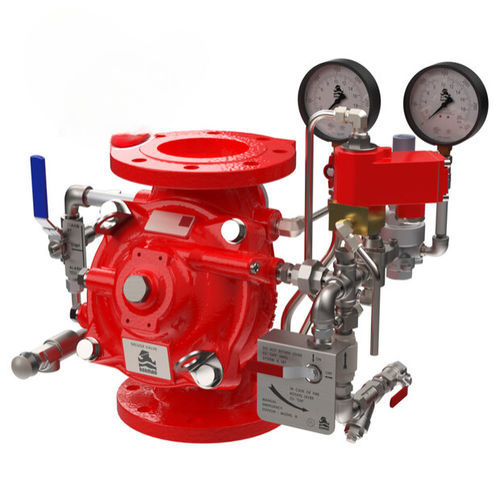

Electrically-actuated valve FP-400Y-3DC

pressure-controlshut-offfor water

Overview
The BERMAD FP-400Y-3DC is an elastomeric, hydraulic deluge valve operated by line pressure and designed for advanced fire-protection installations. It is actuated by a 3-way solenoid valve for remote open/close and integrates a pressure-control pilot to deliver a precise, stable preset downstream water pressure. A latching (bistable) option keeps the valve open until remotely released. Suitable for open-nozzle/high-pressure systems and configurable with electrical components for hazardous locations. Optional valve position indicator with limit-switch interfaces for Fire & Gas monitoring.

Features & Benefits

• Safety and reliability
  • Proven, simple hydraulic design with fail-safe behavior
  • One-piece elastomeric diaphragm seal (VRSD technology)
  • Unobstructed full-bore flow path for high capacity
  • No mechanical moving parts in the main flow body
  • Remote shut-off and remote activation capability
  • Integrated pilot ensures precise and stable downstream pressure
  • Optional valve position limit switches for monitoring
• Fire-protection oriented
  • Face-to-face length standardized to ISO 5752 / EN 558-1
  • Designed to meet industry requirements for deluge valves
• Serviceability
  • In-line serviceable design to minimize downtime
  • Quick and easy cover removal for maintenance
  • Swivel-mounted drain valves for sizes ≥ 3"

Typical applications

• Remote-control water spray/deluge systems
• Foam application systems
• High-pressure water supplies
• Corrosive-water fire-protection systems (with suitable materials)

Options & accessories

• PS: Pressure switch
• W: Water motor alarm
• ZS: Limit switch assembly
• DV2: Downstream drain valve
• I: Visual valve position indicator
• DV: Drain valve*
• PI: Pressure gauge*
• AV: 3-way alarm test valve*
• DC: Automatic drip-check valve*

Technical specifications

• Model: FP-400Y-3DC (BERMAD)
• Valve type: Elastomeric, hydraulic, line-pressure operated deluge valve
• Actuation: 3-way solenoid valve for remote open/close (electric activation)
• Integrated pilot: Pressure-control pilot for precise, stable downstream pressure
• Latching: Optional bistable/latching function to maintain open state until remote release
• Suitable fluids: Fire water, foam solutions and selected corrosive liquids (per material selection)
• Monitoring: Optional valve position indicator with limit switch for Fire & Gas systems
• Face-to-face: ISO 5752 / EN 558-1
• Installation: Vertical or horizontal orientations supported
• Typical sizes: Commonly specified from 1½" to 16" (DN40 to DN400) depending on configuration
• Pressure capability: Designed for high-pressure applications (refer to product datasheet; related 400Y models reference values up to ≈25 bar / 365 psi)
