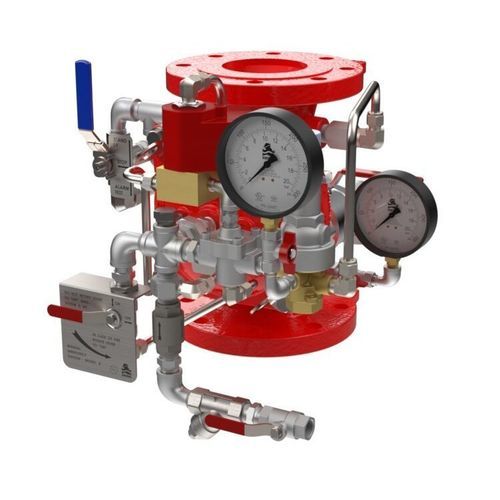

Diaphragm valve FP-400E-3DC

electrically-operatedshut-offflow control

Overview
The BERMAD model FP-400E-3DC is an elastomeric, hydraulic, line-pressure operated deluge valve designed for advanced fire protection systems and current industry standards. It is activated by a 3-way solenoid valve enabling remote opening and closing. An integrated pressure-control pilot provides a precise, stable pre-set downstream water pressure. The FP-400E-3DC is ideal for open-nozzle systems with high-pressure water supply and is available with electric components suitable for hazardous locations. The optional valve position indicator can include a limit switch compatible with Fire & Gas monitoring systems.

Key Features

• Time-proven, simple design with fail-safe actuation
• Single-piece, rugged elastomeric diaphragm seal (VRSD technology)
• Obstacle-free, uninterrupted flow path
• No mechanical moving parts inside the valve body
• UL429A Listed 3-way solenoid valve
• Optional valve position limit switches
• Meets applicable industry standards for deluge valves

Typical Applications

• Automatic water spray systems
• Electric fire detection systems with control panels
• Foam applications
• Remote Control Monitors

Additional Features / Options

• ZS: Limit Switch Assembly
• W: Water Motor Alarm
• PS: Pressure Switch
• I: Visual Valve Position Indicator
• PI: Pressure Gauge*
• DV: Drain Valve*
• DC: Automatic Drip Check Valve*
• AV: 3-way Alarm Test Valve*

Characteristics / Technical specifications

• Model: FP-400E-3DC
• Denomination: Electric Pressure Control On-Off Deluge Valve
• Series: 400E Series
• Brand: BERMAD
• Operation: Elastomeric, hydraulic, line-pressure operated deluge valve
• Actuation: Controlled via integrated 3-way solenoid valve (electric)
• Pilot: Integrated pressure-control pilot for precise, stable downstream pressure
• Solenoid: UL429A listed 3-way solenoid valve
• Applications: Designed for open-nozzle deluge systems, foam systems, high-pressure water supply installations
• Safety/Monitoring: Optional valve position indicator and limit switch suitable for Fire & Gas monitoring systems
• Environmental/Electrical: Available with electric components suitable for hazardous locations
• Internal product barcode (page data): 204226
• Available documentation: product page PDF, installation & maintenance (IOM), spare parts list, engineering data, brochures, ordering guide
