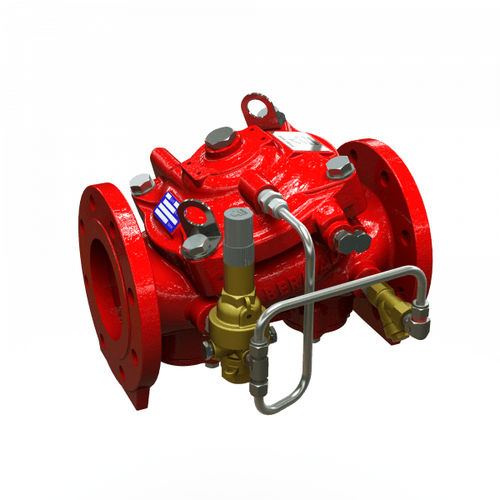

Diaphragm valve FP-42Thydraulically-operatedfor controlpressure-reducing
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- hydraulically-operated
- Function
- for control, pressure-reducing
- Media
- for water
- Material
- elastomer
- Associated function
- reducing
- Other characteristics
- actuated, pre-assembled, deluge
- DN
Max.: 300 mm
(11.811 in)Min.: 40 mm
(1.575 in)- Pressure
17 bar
(246.6 psi)- Temperature
50 °C
(122 °F)
Description
Overview

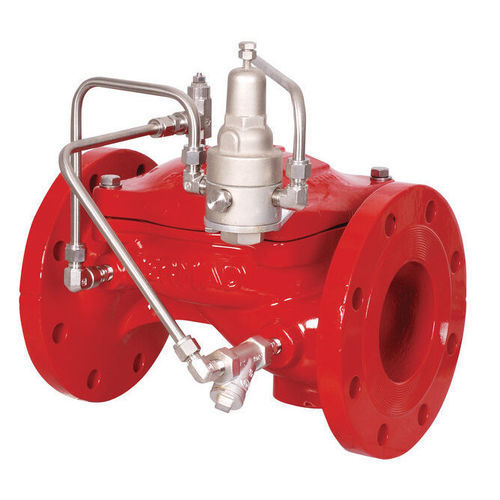

The FP-420-00 pressure reducing valve is an elastomeric, hydraulic, line-pressure driven, diaphragm-actuated control valve designed to reduce high or unstable upstream pressure and maintain a precise, stable downstream pressure regardless of fluctuating demand or varying upstream pressure. Suited for fire protection applications, it controls fire pump discharge and prevents over-pressure in sprinkler systems, hose stations and other discharge devices.
Features & Benefits
Typical Applications
Technical characteristics / specifications
The FP-420-00 pressure reducing valve is an elastomeric, hydraulic, line-pressure driven, diaphragm-actuated control valve designed to reduce high or unstable upstream pressure and maintain a precise, stable downstream pressure regardless of fluctuating demand or varying upstream pressure. Suited for fire protection applications, it controls fire pump discharge and prevents over-pressure in sprinkler systems, hose stations and other discharge devices.
Features & Benefits
- Safety and reliability
- Fail Open safety design
- Single-piece elastomer (VRSD) construction
- Obstacle-free, uninterrupted flow path
- Main valve without internal mechanical moving parts
- High performance
- Fast, smooth stabilizing response to pressure fluctuations
- Quiet and smooth operation
- Ensures precise, stable downstream water pressure
- Quick and easy maintenance
- Fast and easy cover removal
- In-line serviceable design
- Compact, space-saving dimensions
Typical Applications
- Sprinkler feed systems
- Fire pump discharge control
- Hose station supply
- Fire hydrant supply
- Zonal pressure control
Technical characteristics / specifications
- Brand: BERMAD
- Model: FP-420-00
- Series: 400E Series
- Product type: Pressure reducing valve (fire protection)
- Operation: Elastomeric, hydraulic, line-pressure driven, diaphragm actuated
- Valve technology: VRSD single-piece elastomer; obstacle-free flow path
- Design: Fail Open safety design; main valve with no mechanical moving parts
- Function: Reduces unstable upstream pressure to maintain precise downstream pressure despite fluctuating demand
- Typical use: Fire pump discharge control; prevention of over-pressure in sprinkler systems, hose stations and other discharge devices
- Performance: Fast stabilizing response; quiet and smooth operation; precise downstream pressure control
- Maintenance: Fast cover removal; in-line serviceable; compact dimensions
- Segment: Fire protection
- Internal identifier / data-barcode: 478935
