Diaphragm valve FP-400E-4D

pneumatically-operatedregulatingfor water

Overview

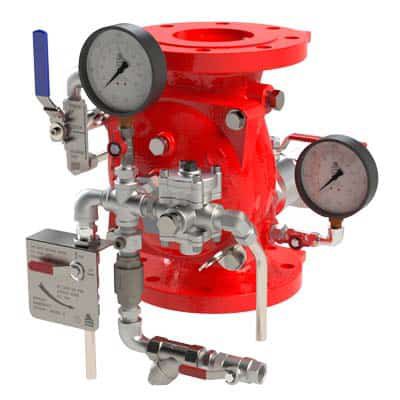

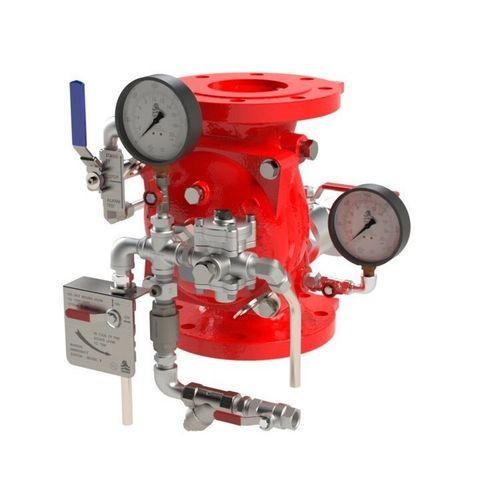

The BERMAD FP-400E-4D is an elastomeric, hydraulic line-operated deluge valve designed for advanced fire protection systems and to meet current industry standards. It is controlled by a pneumatic relay valve typically activated by a pressure drop in a pneumatic pilot line and can also be operated remotely. An optional valve position indicator can include a limit switch suitable for integration with Fire & Gas monitoring systems. The FP-400E-4D is intended for systems with open nozzles for water or foam discharge and is suitable for corrosive media and freezing environments.

Features and benefits

• Safety and reliability
  • Time-proven, simple design with fail-safe actuation
  • Single-piece elastomeric diaphragm seal — VRSD technology
  • Obstacle-free, uninterrupted flow path
  • No mechanical moving parts in the main flow
  • Optional valve position limit switches for monitoring
  • Complies with relevant industry fire protection standards
• Quick and easy maintenance
  • Designed for high reliability and straightforward maintenance
  • In-line serviceable with fast, easy cover removal

Typical Applications

• Remote release deluge/water spray systems
• Foam discharge systems
• Installations in freezing or cold environments

Additional Features

• ZS: Limit Switch Assembly
• W: Water Motor Alarm
• PS: Pressure Switch
• I: Visual Valve Position Indicator
• PI: Pressure Gauge*
• DV: Drain Valve*
• DC: Automatic Drip Check Valve*
• AV: 3-way Alarm Test Valve*
• AMD-74/75: Air Maintenance Device

Technical specifications

• Model: FP-400E-4D
• Series: 400E Series
• Product type: Pneumatically controlled on-off deluge valve
• Actuation / Control: Pneumatic relay valve, typically activated by pressure decrease in a pneumatic pilot line; remote operation possible
• Valve design: Elastomeric, hydraulic line-operated deluge valve with single-piece elastomeric diaphragm (VRSD technology)
• Flow path: Obstacle-free, uninterrupted flow
• Maintenance: In-line serviceable; fast and easy cover removal
• Optional outputs: Valve position indicator with limit switch suitable for Fire & Gas monitoring
• Applications: Water or foam discharge systems; suitable for corrosive media and freezing environments
• Suitable for: Deluge systems, foam applications, remote release water spray systems
• Internal reference / barcode on page: 204227
