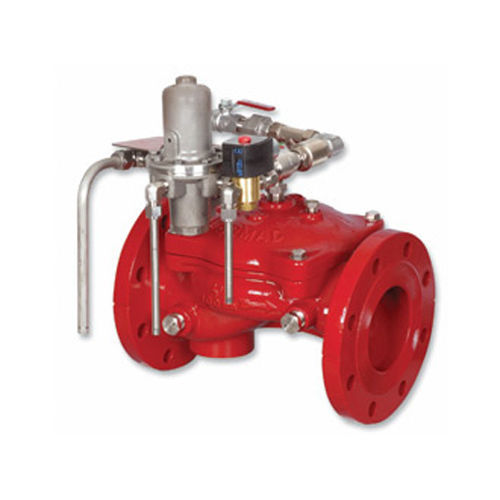

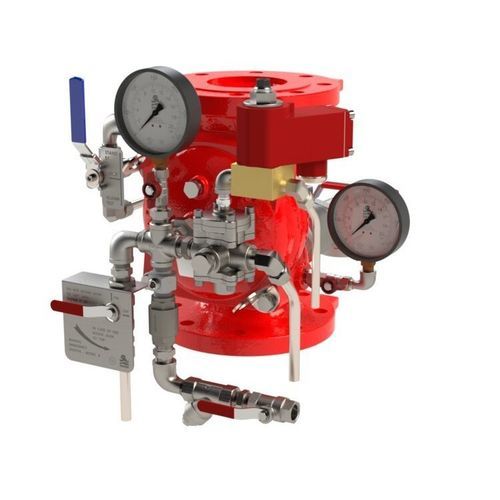

Diaphragm valve FP-400E-6D

electropneumaticelectrically-actuatedpneumatically-operated

Product Overview
The BERMAD FP-400E-6D is an elastomeric, hydraulic line pressure operated electro-pneumatic on-off deluge valve designed for advanced fire protection systems. It opens on an electric signal and/or on a pressure drop in a pneumatic pilot line. Optional valve position indicator and limit-switch assemblies enable integration with Fire & Gas monitoring; electrical components for hazardous locations are available.

Features & Benefits

• Time-proven simple design with fail-safe actuation
• Single-piece elastomeric diaphragm seal (VRSD)
• Obstacle-free, uninterrupted flow path
• No mechanical moving parts in the flow path
• UL429A-listed 3-way solenoid option
• Optional valve position limit switches for monitoring
• Complies with relevant industry standards

Quick and Easy Maintenance

• Designed for high reliability and straightforward maintenance
• In-line serviceable to minimize downtime
• Fast and easy cover removal

Typical Applications

• Remote-control water spray / deluge systems
• Foam suppression systems
• Corrosive water systems
• Dual redundant detection schemes (electric/pneumatic)

Additional Features / Options

• PS: Pressure Switch
• W: Water Motor Alarm
• ZS: Limit Switch Assembly
• AMD-74/75: Air Maintenance Device
• I: Visual Valve Position Indicator
• DV: Drain Valve*
• PI: Pressure Gauge*
• AV: 3-way Alarm Test Valve*
• DC: Automatic Drip Check Valve*

Technical specifications

• Model: FP-400E-6D
• Series: 400E Series
• Product type: Electro-pneumatically controlled on-off deluge valve for fire protection
• Operation: Elastomeric, hydraulic line pressure operated; opens on electric signal and/or pneumatic pilot-line pressure drop
• Actuation: Electro-pneumatic (supports electric and pneumatic detection inputs)
• Sealing: Single-piece elastomeric diaphragm (VRSD)
• Flow path: Obstacle-free, uninterrupted
• Moving parts: No mechanical moving parts in the flow path
• Certifications: UL-listed 3-way solenoid option (UL429A)
• Serviceability: In-line serviceable; quick cover removal
• Suitable for: Open-nozzle deluge systems, foam and corrosive-water systems; hazardous-location electrical options available
• Monitoring: Valve position indicator with limit-switch option suitable for Fire & Gas systems
