Overview

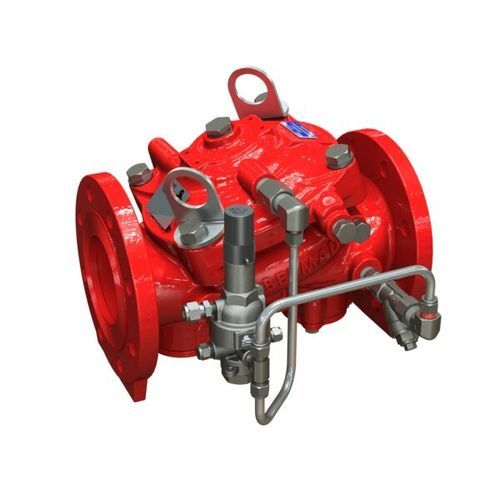

The BERMAD FP-42T-06 is an elastomeric, hydraulic line pressure driven differential reducing valve designed for advanced fire protection systems. It maintains a preset pressure differential between two sensed points using an adjustable differential pilot; when the differential approaches the preset maximum the pilot closes the main valve to regulate and prevent further rise. Ideal for balanced foam proportioning systems and as safeguard for dosing pump flow overload. Optional valve position indicator and limit switch can be supplied for Fire & Gas monitoring systems.

Features & Benefits

• Safety and reliability
  • Time-proven simple design with fail-safe actuation
  • Single-piece rugged elastomeric diaphragm seal (VRSD technology)
  • Obstacle-free, uninterrupted flow path
  • No mechanical moving parts in the flow path
• High performance
  • Very high flow efficiency
  • Efficient straight-through flow
  • Approved for PN25 / 365 psi
• Quick and easy maintenance
  • In-line serviceable
  • Fast and easy cover removal

Typical Applications

• Pump overload & cavitation protection
• Balanced pressure proportioning systems
• Pump flow safeguard
• Foam concentrate injection systems

Options

• Adjustable differential pilot valve
• Valve position indicator with optional limit switch suitable for Fire & Gas monitoring systems

Technical specifications

• Model family / Series: 400Y Series
• Model designation: FP-42T-06
• Function: Differential pressure control / differential reducing valve, in-line
• Actuation: Elastomeric hydraulic (line pressure driven)
• Pilot: Adjustable differential pilot valve
• Diaphragm: Single-piece elastomeric diaphragm (VRSD technology)
• Flow path: Straight-through, obstacle-free
• Maintenance: In-line serviceable, fast cover removal
• Approvals / Rating: Approved for PN25 / 365 psi
• Applications: Fire protection (balanced foam proportioning, dosing pump safeguard), pump overload and cavitation protection
• Optional accessories: Valve position indicator, limit switch for monitoring systems
