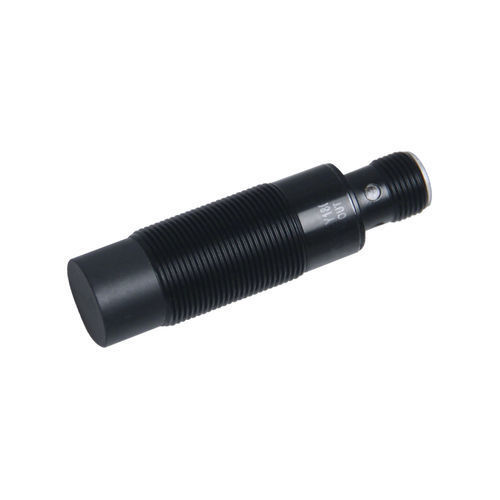

Inductive proximity sensor CL12-RF4DNF2cylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass, PVC, PTFE
- Applications
- for welding
- Other characteristics
- 3-wire
- Measuring range
Max.: 4 mm
(0.16 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product name
Inductive proximity sensor CL12-RF4DNF2 (CL12 series)
Main features
Technical specifications
Mechanical / Electrical parameters
Operating environment
Characteristics / Summary
Inductive proximity sensor CL12-RF4DNF2 (CL12 series)
Main features
- Type: Weld-spatter resistant
- Sensing distance: 4 mm
- Shape: Cylindrical (M12)
- Principle: Inductive
- Output: NPN, normally closed (NC)
Technical specifications
- Type: Weld-spatter resistant
- Sensing distance: 4 mm
- Shape: Cylindrical
- Principle: Inductive
- Thread size: M12
- Cable length: 2 m (moulded cable)
- Sensing direction: Frontal
- Operating frequency: 1000 Hz
- Response time: 500 μs
- Detectable target: Metallic objects
- Special feature: Weld-spatter resistance
- Accessories: 2 nuts, 1 serrated washer, certificate
- Hysteresis: Less than 10% of sensing distance
- Standard target: Iron 12 × 12 × 1 mm
- Temperature drift: Within ±10% (reference +23°C) over -25°C to +70°C
- Materials: Housing brass with PTFE plating; sensing face PTFE; cable PVC
Mechanical / Electrical parameters
- Output: NPN, normally closed
- Supply voltage: DC 12–24 V
- Power supply type: 3-wire DC
- Protection rating: IP67
- Connection: Moulded cable
- Signal type: Switching
- Operating mode: Normally closed
- Mounting: Flush/embedded
- Current consumption: ≤ 13 mA
- Indicator: Red output LED
- Protection: Short-circuit and surge protection
- Voltage influence: ±1% change in sensing distance within ±15% supply voltage variation
- Load current: ≤ 200 mA
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm amplitude, X/Y/Z 2 h
- Weight: approx. 67 g
Operating environment
- Ambient temperature: -25°C to +70°C
Characteristics / Summary
- Model: CL12-RF4DNF2
- Series: CL12 inductive proximity sensors
- Sensing distance: 4 mm
- Detection principle: Inductive
- Form factor: M12 cylindrical, flush/embedded mounting
- Output: NPN NC, normally closed, switching output
- Supply: DC 12–24 V, 3-wire DC
- Protection: IP67
- Cable length: 2 m (moulded cable)
- Frequency / response time: 1000 Hz / 500 μs
- Materials: Brass with PTFE plating (housing), PTFE sensing face, PVC cable
- Accessories: 2 nuts, 1 serrated washer, certificate
