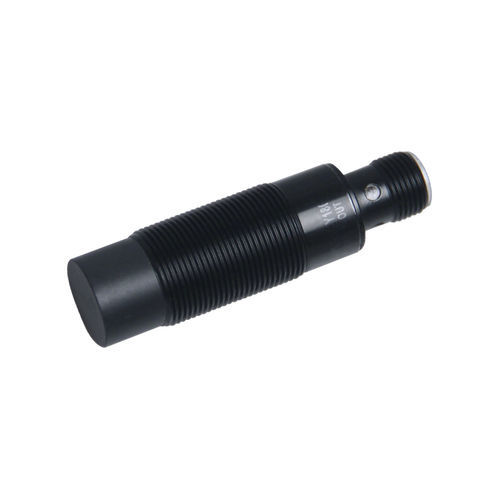

Inductive proximity sensor CL12-RF4DPF2cylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- PNP, with switching function
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Applications
- for welding
- Other characteristics
- 3-wire
- Measuring range
Min.: 0 mm
(0 in)Max.: 4 mm
(0.16 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
- Product type: weld-resistant inductive proximity sensor
- Sensing distance: 4 mm
- Housing: cylindrical, M12
- Sensing principle: inductive
- Output: PNP NC (normally closed)
- Cable length: 2 m
Technical specifications
- Model/series: CL12 series
- Sensing distance: 4 mm
- Standard target: iron 12 × 12 × 1 mm
- Hysteresis: < 10% of sensing distance
- Temperature drift: within ±10% over -25 to +70 °C (reference +23 °C)
- Special feature: weld-spatter resistant
- Materials: housing – brass with Teflon coating; sensing face – Teflon; cable – PVC
- Accessories: 2 nuts, 1 internal tooth washer, inspection certificate
Mechanical / electrical parameters
- Output type: PNP NC
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Operating mode: normally closed
- Mounting: flush (embedded)
- Current consumption: < 13 mA
- Load current: < 200 mA
- Indicator: red output LED
- Protection: short-circuit and surge protection
- Voltage effect: within ±1% sensing distance change for ±15% supply variation
- Insulation resistance: > 50 MΩ (DC 500 V)
- Withstand voltage: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, X/Y/Z 2 h
- Response frequency: 1000 Hz
- Response time: 500 μs
- Target: metallic objects
- Weight: approx. 67 g
Operating environment
- Ambient temperature: -25 to +70 °C
