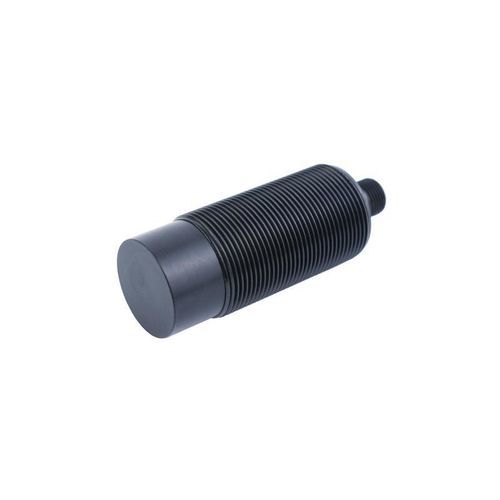

Inductive proximity sensor CL30-RN30DNF1-A

cylindricalM30NPN

Product overview
Inductive proximity sensor from the CL30 series, model CL30-RN30DNF1-A. Weld-spatter resistant design, cylindrical M30 housing, front sensing for metallic targets, NPN normally open (NO) output, nominal sensing distance 30 mm.

Key features

• Type: Weld-spatter resistant
• Sensing distance: 30 mm
• Shape: Cylindrical
• Sensing principle: Inductive
• Output: NPN NO (normally open)
• Cable length: 2 m
• Sensing direction: Front
• Switching frequency: 100 Hz
• Response time: 5 ms
• Detectable targets: Metal
• Special characteristic: Weld-spatter resistance
• Accessories: Inspection certificate
• Hysteresis: Less than 10% of sensing distance
• Standard test target: Iron 90×90×1 mm
• Temperature drift: Within ±10% of sensing distance over -25 to +70 °C (reference +23 °C)
• Materials: Housing: brass with Teflon plating; sensing face: Teflon; cable: PVC

Mechanical / Electrical parameters

• Output type: NPN NO (normally open)
• Supply voltage: DC 12–24 V
• Power connection: 3-wire DC
• Ingress protection: IP67
• Connection: Connector
• Signal type: Discrete switch
• Operating mode: Normally open
• Mounting: Non-flush
• Current consumption: ≤ 13 mA
• Indicator: Red output LED
• Protection circuits: Short-circuit protection, surge protection
• Voltage influence: Within ±15% supply variation, sensing distance change within ±1%
• Load current: ≤ 200 mA
• Insulation resistance: ≥ 50 MΩ (DC 500 V megger) between live parts and housing
• Shock resistance: 500 m/s², X/Y/Z directions, 3 times
• Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
• Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, X/Y/Z directions, 2 h
• Weight: approx. 207 g

Operating environment

• Ambient temperature: -25 ~ +70 °C

Technical specifications

• Series: CL30 series
• Model: CL30-RN30DNF1-A
• Sensing distance: 30 mm
• Operating voltage: DC 12–24 V
• Output: NPN normally open (NO)
• Ingress protection: IP67
• Housing size: M30
• Cable length: 2 m
• Response time: 5 ms
• Temperature range: -25 ~ +70 °C
• Materials: Brass with Teflon plating / Teflon sensing face / PVC cable
