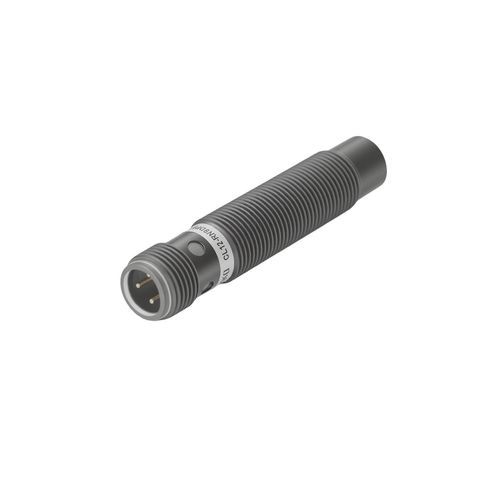

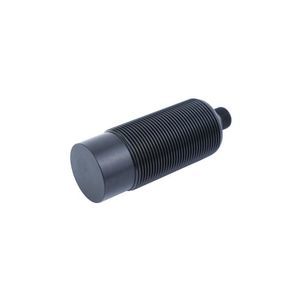

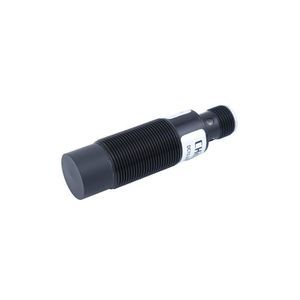

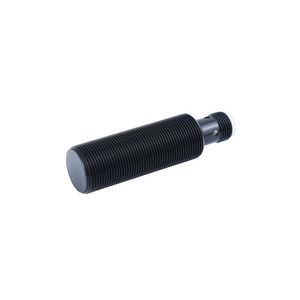

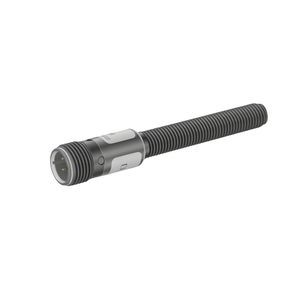

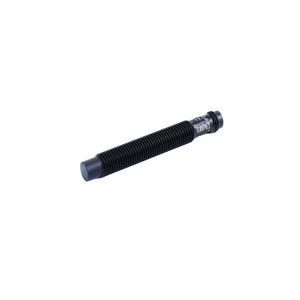

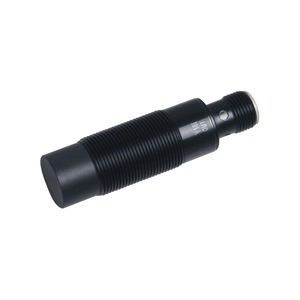

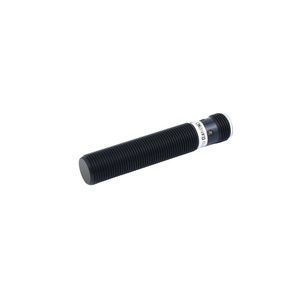

Inductive proximity sensor CL12-RN8DNF1-AcylindricalM12NPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- NPN
- Electrical connection
- M12 connector
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
0.8 cm
(0.31 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product name
CL12-RN8DNF1-A (CL12 series inductive proximity sensor)
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Packing / Accessories
Features / Technical summary
CL12-RN8DNF1-A (CL12 series inductive proximity sensor)
Overview
- Type: weld-spatter resistant
- Sensing distance: 8 mm
- Form factor: cylindrical (M12)
- Sensing principle: inductive (metal targets)
- Output: NPN NO (normally open)
Technical specifications
- Cable length: 2 m
- Sensing direction: front face
- Switching frequency: 500 Hz
- Response time: 1 ms
- Detectable target: metal
- Special requirement: weld-spatter resistant
- Standard target: iron 24 × 24 × 1 mm
- Hysteresis: < 10% of sensing distance
- Temperature influence: within ±10% over -25 °C to +70 °C (reference +23 °C)
- Materials: housing brass with PTFE coating; sensing face PTFE; cable PVC
Mechanical / Electrical parameters
- Output: NPN NO
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection rating: IP67
- Connection: connector
- Signal type: switching
- Operating mode: normally open
- Mounting: non-flush (non-embeddable)
- Current consumption: ≤ 13 mA
- Indicator: red output LED
- Protection circuits: short-circuit and surge protection
- Voltage influence: sensing distance change within ±1% for ±15% supply variation
- Load current: ≤ 200 mA
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
- Weight: approx. 65 g
Operating environment
- Operating temperature: -25 °C to +70 °C
Packing / Accessories
- Nuts ×2
- Serrated washer ×1
- Certificate
Features / Technical summary
- Series: CL12
- Model: CL12-RN8DNF1-A
- Sensing method: inductive (metal targets)
- Sensing distance: 8 mm (standard target: iron 24×24×1 mm)
- Output: NPN normally open, 3-wire, load ≤ 200 mA
- Supply: DC 12–24 V, operating current < 13 mA
- Protection: IP67, suitable for -25 °C to +70 °C
- Form / Mounting: cylindrical M12, non-flush mounting
