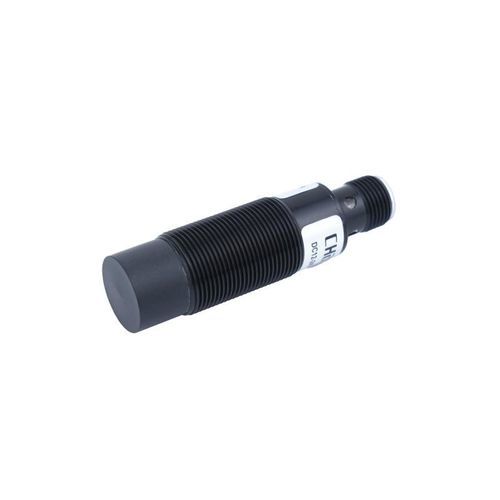

Inductive proximity sensor CL18-RN12AKF1-AcylindricalM18with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- with switching function, 2-wire
- Supply voltage
- AC, 24VAC, 220VAC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Measuring range
1.2 cm
(0.47 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product
Key features
Technical specifications
Mechanical / Electrical parameters
Operating environment
Accessories
Applications
- Type: Inductive proximity sensor
- Model: CL18-RN12AKF1-A
- Series: CL18
- Solder-resistant type
Key features
- Detection distance: 12 mm
- Housing diameter: M18 (cylindrical)
- Output: AC two-wire, normally open (NO)
- Protection rating: IP67
- Supply voltage: AC 24–220 V
Technical specifications
- Cable length: 2 m
- Detection direction: frontal
- Operating frequency: 25 Hz
- Response time: 20 ms
- Target type: metallic objects (standard target: iron 36×36×1 mm)
- Hysteresis: <10% of sensing distance
- Temperature drift: within ±10% over -25 to +70 °C (reference +23 °C)
- Materials: brass body plated with PTFE; sensing face PTFE; cable PVC
- Weight: approx. 160 g
Mechanical / Electrical parameters
- Output mode: AC two-wire NO
- Supply voltage: AC 24–220 V
- Power supply type: AC two-wire
- Connection: connector
- Signal type: switching output
- Mounting: non-flush
- Indicator: red output LED
- Influence of supply voltage: within ±15% supply variation, detection distance change ≤ ±1%
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Switching capacity: 5–200 mA
- Leakage current: <1.7 mA
- Shock resistance: 500 m/s², 3 shocks per axis (X, Y, Z)
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h per axis
Operating environment
- Operating temperature: -25 to +70 °C
Accessories
- 2 nuts, 1 internal tooth washer, certificate of conformity
Applications
- Metal detection in industrial automation; suitable for use near soldering processes due to solder-resistant construction
