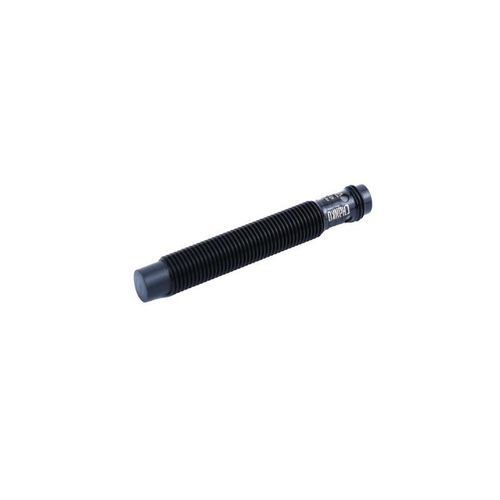

Inductive proximity sensor CL08-RN4DLF1-AcylindricalM8with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- with switching function, 2-wire
- Electrical connection
- bare wires
- Supply voltage
- DC
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Other characteristics
- non-contact
- Measuring range
0.4 cm
(0.16 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Key features / summary
- Product series: CL08 series proximity sensors
- Model: CL08-RN4DLF1-A
- Type: Solder-resistant
- Sensing principle: Inductive (metal detection)
- Housing shape: Cylindrical, M8
- Sensing distance: 4 mm
- Sensing direction: Front sensing face
- Cable length: 2 m
- Output: DC two‑wire, Normally Open (NO)
- Response frequency: 1000 Hz
- Response time: 500 μs
Technical specifications
- Standard target: Iron 12 × 12 × 1 mm
- Hysteresis: < 10% of sensing distance
- Temperature drift: within ±10% of sensing distance over -25 to +70 °C (reference +23 °C)
- Materials: Housing — brass with PTFE coating; sensing face — PTFE; cable — PVC
- Accessories: Nuts ×2, internal tooth washer ×1, inspection certificate
Mechanical / electrical parameters
- Supply voltage: DC 12 ~ 24 V
- Power type: DC two‑wire
- Ingress protection: IP67
- Connection: Connector
- Signal type: Switching output
- Operating mode: Normally open
- Indicator: Red output LED
- Voltage influence: Within ±15% of rated supply, sensing distance change within ±1%
- Insulation resistance: ≥ 50 MΩ (DC 500 V megohmmeter) between live parts and housing
- Switching capacity: 3 ~ 100 mA
- Leakage current: ≤ 0.8 mA
- Shock resistance: 500 m/s², 3 shocks each in X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
- Vibration resistance: 10 ~ 55 Hz, double amplitude 1.5 mm, 2 h per axis X, Y, Z
- Weight: approx. 40 g
Operating environment
- Ambient temperature: -25 ~ +70 °C
Key features / summary
- Series: CL08
- Model: CL08-RN4DLF1-A
- Sensing distance: 4 mm
- Principle: Inductive (metal detection)
- Size: M8 cylindrical
- Output: DC two‑wire, Normally Open (NO)
- Supply: DC 12~24 V
- Ingress protection: IP67
- Cable length: 2 m
- Response frequency / time: 1000 Hz / 500 μs
- Materials: PTFE‑coated brass housing, PTFE sensing face, PVC cable
- Accessories: Nuts ×2, internal tooth washer ×1, inspection certificate
