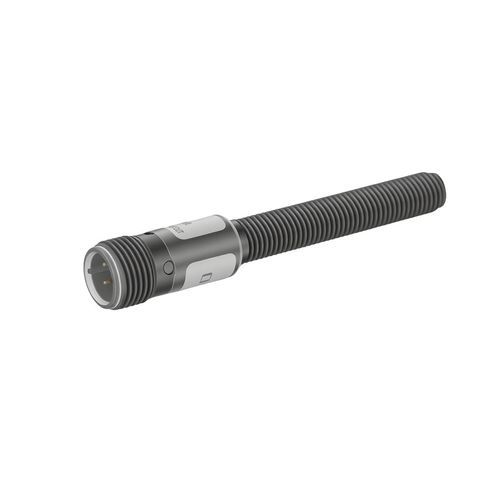

Inductive proximity sensor CL08 seriescylindricalM8with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- with switching function, 2-wire
- Electrical connection
- M8 connector
- Supply voltage
- DC, 24VDC, 12VDC
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Applications
- industrial
- Other characteristics
- non-contact, miniature
- Measuring range
0.2 cm
(0.08 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Technical specifications
Mechanical/Electrical parameters
Operating environment
Accessories
Features / Applications
- Product type: weld-resistant type
- Sensing distance: 2 mm
- Form factor: cylindrical (M8)
- Detection principle: inductive (metal detection)
- Output: DC 2-wire, NO (normally open)
- Cable length: 2 m
- Detection direction: front
- Response frequency: 1200 Hz; response time: 400 μs
Technical specifications
- Detectable target: metal
- Standard test object: iron 8 × 8 × 1 mm
- Hysteresis: less than 10% of sensing distance
- Temperature drift: within ±10% of sensing distance over -25 ~ +70 °C (reference +23 °C)
- Materials: housing – brass with Teflon plating; sensing face – Teflon; cable – PVC
Mechanical/Electrical parameters
- Output type: DC 2-wire NO
- Supply voltage: DC 12 ~ 24 V
- Power supply: two-wire DC
- Protection rating: IP67
- Connection: connector
- Signal type: switching
- Operating mode: normally open
- Mounting: embedded
- Indicator: red output LED
- Voltage influence: within ±1% detection distance variation for ±15% supply voltage variation
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Switching capacity: 3–100 mA
- Leakage current: ≤ 0.8 mA
- Shock resistance: 500 m/s², 3 times in X, Y, Z
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min (active parts to housing)
- Vibration: 10–55 Hz, double amplitude 1.5 mm, 2 h per axis (X, Y, Z)
- Weight: approx. 40 g
Operating environment
- Ambient temperature: -25 ~ +70 °C
Accessories
- Included: 2 nuts, 1 serrated washer, certificate
Features / Applications
- Series: CL08 proximity sensor series
- Model: CL08-RF2DLF1-A
- Short sensing distance (2 mm) for precise detection
- Inductive metal detection with fast response (400 μs) and high frequency (1200 Hz)
- Wide DC supply range (12–24 V) with two-wire connection
- IP67 protection, vibration and shock resistant for industrial environments
- Materials and Teflon surface suitable for weld-resistant / Teflon processing environments
- Typical applications: 3C electronics, automated parking systems, logistics and warehouse metal detection
