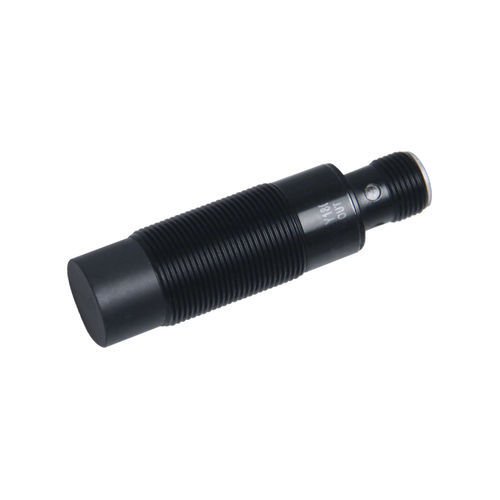

Inductive proximity sensor CL12-RF4DPF1
cylindricalM12digital

Inductive proximity sensor - CL12-RF4DPF1 - CHANKO SENSOR - cylindrical / M12 / digital
Inductive proximity sensor - CL12-RF4DPF1 - CHANKO SENSOR - cylindrical / M12 / digital
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Characteristics

Technology
inductive
Shape
cylindrical
Diameter
M12
Output signal
PNP, with switching function, digital
Supply voltage
DC, 24VDC, 12VDC
Mounting
flush
Material
brass, PVC, PTFE
Protection level
splash-resistant, IP67
Other characteristics
3-wire
Measuring range

Min.: 0 mm
(0 in)

Max.: 4 mm
(0.16 in)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 70 °C
(158 °F)

Description

Product
  • Product name: CL12-RF4DPF1
  • Series: CL12 series inductive proximity sensors
  • Type: Solder-resistant (splash/slag resistant)
  • Sensing distance: 4 mm
  • Housing size: M12 cylindrical
  • Sensing principle: Inductive
  • Output: PNP normally open (NO)


Technical specifications
  • Detection distance: 4 mm
  • Housing: cylindrical (M12)
  • Cable length: 2 m
  • Detection direction: frontal
  • Operating frequency: 1000 Hz
  • Response time: 500 μs
  • Target: metallic objects (standard target: iron 12 × 12 × 1 mm)
  • Hysteresis: ≤10% of detection distance
  • Temperature drift: within ±10% over -25 to +70 °C (reference +23 °C)
  • Special requirement: solder splash / slag resistant
  • Materials: housing – brass with PTFE plating; sensing face – PTFE; cable – PVC
  • Accessories supplied: 2 nuts, 1 tooth lock washer, inspection certificate


Mechanical / Electrical parameters
  • Output type: PNP NO
  • Supply voltage: DC 12–24 V
  • Wiring: 3-wire DC
  • Protection rating: IP67
  • Connection: molded cable
  • Signal type: switching
  • Operating mode: normally open
  • Mounting: flush/embedded
  • Current consumption: ≤13 mA
  • Indicator: red output LED
  • Protection circuits: short-circuit protection, surge protection
  • Voltage influence: detection distance change ≤ ±1% within ±15% supply variation
  • Load current: ≤200 mA
  • Insulation resistance: ≥50 MΩ (measured with DC 500 V megohmmeter between live parts and housing)
  • Shock resistance: 500 m/s², X/Y/Z, 3 shocks
  • Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
  • Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, X/Y/Z, 2 h each
  • Weight: approx. 67 g


Environment
  • Operating temperature: -25 to +70 °C


Accessories
  • 2 nuts, 1 tooth lock washer, inspection certificate
