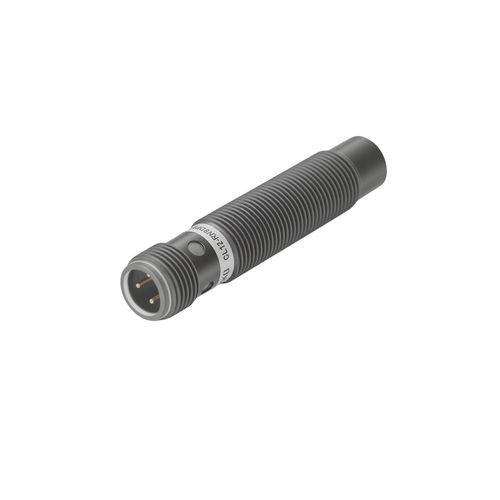

Inductive proximity sensor CL12-RN6AKF1-AcylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, 2-wire
- Electrical connection
- M12 connector
- Supply voltage
- AC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Applications
- industrial
- Other characteristics
- non-contact
- Measuring range
0.6 cm
(0.24 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product name
Main features
Technical specifications
Mechanical / Electrical parameters
Operating environment
Characteristics / Technical data
- CL12 series inductive proximity sensor (model: CL12-RN6AKF1-A)
Main features
- Type: solder-resistant
- Detection distance: 6 mm
- Housing: cylindrical, M12
- Sensing principle: inductive
- Output: AC two-wire, Normally Open (AC 2-wire NO)
- Cable length: 2 m
Technical specifications
- Detection direction: frontal
- Response frequency: 25 Hz
- Response time: 20 ms
- Detectable targets: metallic objects
- Hysteresis: less than 10% of switching distance
- Standard test object: iron 18×18×1 mm
- Temperature drift: within ±10% of sensing distance over -25 to +70 °C referenced to +23 °C
- Materials: brass with Teflon plating (housing), Teflon sensing face, PVC cable
- Accessories: nuts ×2, internal tooth washer ×1, conformity certificate
Mechanical / Electrical parameters
- Output: AC 2-wire, Normally Open
- Supply voltage: AC 24–220 V
- Power supply: two-wire AC
- Ingress protection: IP67
- Connection: connector
- Signal type: switching
- Operating mode: Normally Open
- Mounting: non-embedded
- Indicator: red output LED
- Voltage influence: within ±15% of rated supply, sensing distance variation within ±1%
- Insulation resistance: ≥50 MΩ (DC 500 V) between live parts and housing
- Switching capacity: 5–200 mA
- Leakage current: ≤1.7 mA
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, X/Y/Z 2 h
- Weight: approx. 76 g
Operating environment
- Operating temperature: -25 to +70 °C
Characteristics / Technical data
- Series: CL12
- Model: CL12-RN6AKF1-A
- Detection distance: 6 mm
- Dimensions: M12, cable 2 m
- Supply: AC 24–220 V, two-wire
- Output: AC two-wire, Normally Open (NO), switching, 5–200 mA
- Ingress protection: IP67
- Materials: brass Teflon-plated / Teflon sensing face / PVC cable
- Response frequency / time: 25 Hz / 20 ms
- Operating temperature range: -25 to +70 °C
- Weight: approx. 76 g
