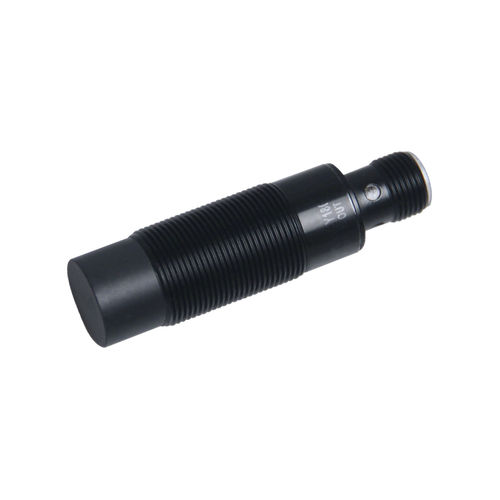

Inductive proximity sensor CL12-RN8DNF1cylindricalM12NPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- NPN
- Electrical connection
- M12 connector
- Mounting
- non-flush
- Protection level
- splash-resistant, IP67
- Other characteristics
- 3-wire
- Measuring range
Min.: 0 mm
(0 in)Max.: 8 mm
(0.31 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product name
Overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Mounting / drawings
Technical summary
- Model: CL12-RN8DNF1-A
- Series: CL12 inductive proximity sensors
Overview
- Type: solder-splash resistant
- Detection distance: 8 mm
- Shape: cylindrical (M12)
- Detection principle: inductive
- Output: NPN normally open (three-wire DC)
Technical specifications
- Detection distance: 8 mm
- Cable length: 2 m
- Detection direction: frontal
- Operating frequency: 500 Hz
- Response time: 1 ms
- Target object: metallic objects (standard target: iron 24×24×1 mm)
- Special feature: solder splash resistance
- Accessories: 2 nuts, 1 lock washer, certificate
- Hysteresis: <10% of sensing distance
- Temperature drift: within ±10% across -25 to +70 °C (reference +23 °C)
- Materials: housing brass with Teflon coating; sensing face Teflon; cable PVC
Mechanical / electrical parameters
- Output type: NPN NO
- Supply voltage: DC 12–24 V
- Power supply: three-wire DC
- Protection class: IP67
- Connection: connector
- Signal type: switching
- Operating mode: normally open
- Mounting: non-flush (non-embedded)
- Current consumption: <13 mA
- Indicator: red output LED
- Protection circuits: short-circuit and surge protection
- Voltage influence: detection distance change within ±1% for ±15% supply variation
- Load current: <200 mA
- Insulation resistance: >50 MΩ (DC 500 V) between live parts and housing
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
- Weight: approx. 65 g
Operating environment
- Operating temperature: -25 to +70 °C
Mounting / drawings
- Inductive cylindrical M12 with cable output — wiring diagram and outline drawings provided on product page
Technical summary
- Model: CL12-RN8DNF1-A
- Series: CL12
- Type: solder-splash resistant
- Detection principle: inductive
- Detection distance: 8 mm
- Format: M12, cylindrical
- Output: NPN NO, three-wire DC
- Supply voltage: DC 12–24 V
- Protection: IP67
- Response frequency: 500 Hz, Response time: 1 ms
- Cable length: 2 m
- Operating temperature: -25 to +70 °C
- Accessories: 2 nuts, 1 lock washer, certificate
