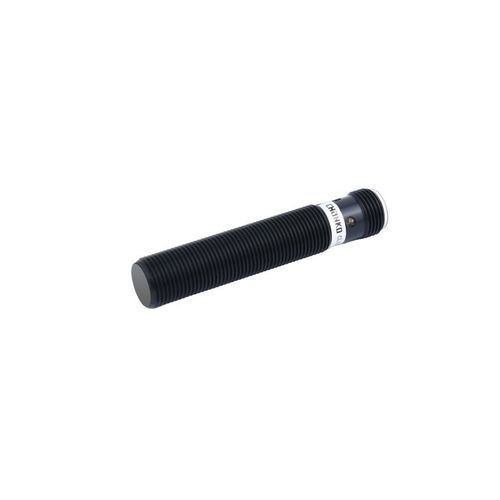

Inductive proximity sensor CL12-RF4DLF1-AcylindricalM122-wire
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- 2-wire
- Electrical connection
- M12 connector
- Supply voltage
- DC
- Mounting
- flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Applications
- industrial
- Other characteristics
- non-contact
- Measuring range
0.4 cm
(0.16 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product name
CL12-RF4DLF1-A (CL12 series inductive proximity sensor, solder-resistant type)
Main features
Mechanical / electrical parameters
Operating environment
Technical specifications
CL12-RF4DLF1-A (CL12 series inductive proximity sensor, solder-resistant type)
Main features
- Product type: solder-resistant
- Sensing distance: 4 mm
- Body shape: cylindrical
- Sensing principle: inductive
- Thread/size: M12
- Output: DC 2-wire NO (normally open)
- Cable length: 2 m
- Sensing direction: frontal
- Operating frequency: 1200 Hz
- Response time: 400 μs
- Detectable target: metallic objects
- Accessories: 2 nuts, 1 tooth washer, inspection certificate
- Hysteresis: less than 10% of sensing distance
- Standard test target: iron 12×12×1 mm
- Temperature drift: within ±10% at reference +23 °C across -25 to +70 °C
- Materials: housing – brass with Teflon plating; sensing face – Teflon; cable – PVC
Mechanical / electrical parameters
- Output type: DC 2-wire NO
- Supply voltage: DC 12–24 V
- Power supply: two-wire DC
- Protection rating: IP67
- Connection: connector
- Signal type: switching
- Operation mode: normally open
- Mounting: flush
- Indicator: red output indicator LED
- Voltage influence: sensing distance change within ±1% for ±15% supply variation
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Switching capacity: 3–100 mA
- Leakage current: <0.8 mA
- Impact resistance: 500 m/s², 3 times on X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm, 2 h each axis
- Weight: approx. 67 g
Operating environment
- Operating temperature: -25 to 70 °C
Technical specifications
- Model: CL12-RF4DLF1-A
- Series: CL12
- Type: inductive proximity sensor (solder-resistant)
- Sensing distance: 4 mm
- Shape: cylindrical, M12
- Output: DC 2-wire normally open (switching)
- Supply: DC 12–24 V (two-wire)
- Protection: IP67
- Cable: 2 m PVC
- Frequency / response: 1200 Hz / 400 μs
- Materials: brass with Teflon plating housing, Teflon sensing face
- Standard target: iron 12×12×1 mm
- Accessories: 2 nuts, 1 tooth washer, inspection certificate
- Temperature range: -25 to 70 °C
