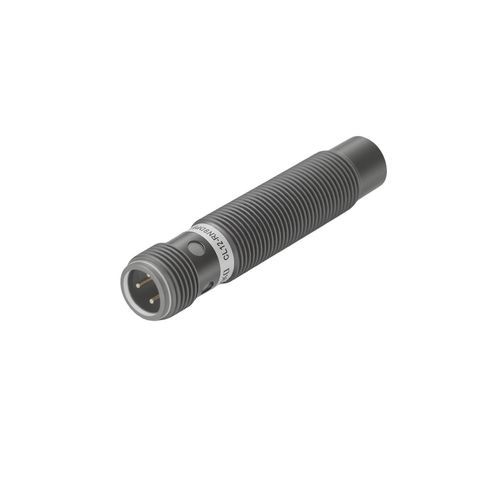

Inductive proximity sensor CL12-RN8DLF1-AcylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, 2-wire
- Electrical connection
- M12 connector
- Supply voltage
- DC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Applications
- industrial
- Other characteristics
- with LED light
- Measuring range
0.8 cm
(0.31 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Recommended applications
Characteristics / technical data
- Product type: weld-resistant type
- Detection distance: 8 mm
- Housing: cylindrical
- Sensing principle: inductive (for metal targets)
- Thread/size: M12
- Output: DC 2‑wire, normally open (NO)
Technical specifications
- Detection distance: 8 mm
- Cable length: 2 m
- Detection direction: frontal
- Operating frequency: 1000 Hz
- Response time: 500 μs
- Target material: metal (standard target: Fe 24×24×1 mm)
- Hysteresis: < 10% of detection distance
- Temperature influence: within ±10% over -25 to +70 °C (reference +23 °C)
- Accessories: 2 nuts, 1 serrated washer, certificate
- Materials: housing brass with Teflon plating; sensing face Teflon; cable PVC
Mechanical / Electrical parameters
- Output type: DC 2‑wire NO
- Supply voltage: DC 12–24 V
- Power supply: 2‑wire DC
- Protection rating: IP67
- Connection: cable with connector
- Signal type: switching
- Operating mode: normally open
- Mounting: non‑flush (non‑embedded)
- Indicator: red output LED
- Voltage influence: < ±1% detection change within ±15% supply variation
- Insulation resistance: > 50 MΩ (DC 500 V) between live parts and housing
- Switching capacity: 3–100 mA
- Leakage current: < 0.8 mA
- Shock resistance: 500 m/s², 3 times each X/Y/Z
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h each X/Y/Z
- Weight: approx. 65 g
Operating environment
- Operating temperature: -25 to +70 °C
Recommended applications
- Consumer electronics (3C) manufacturing
- Automated parking systems
- Logistics and warehousing
Characteristics / technical data
- Series / model: CL12 / CL12-RN8DLF1-A
- Thread: M12 cylindrical
- Detection principle: inductive (metal targets)
- Supply: DC 12–24 V, 2‑wire
- Output: DC 2‑wire, NO, switching, 3–100 mA
- Protection: IP67
- Cable length: 2 m
- Materials: brass with Teflon plating (housing), Teflon sensing face, PVC cable
