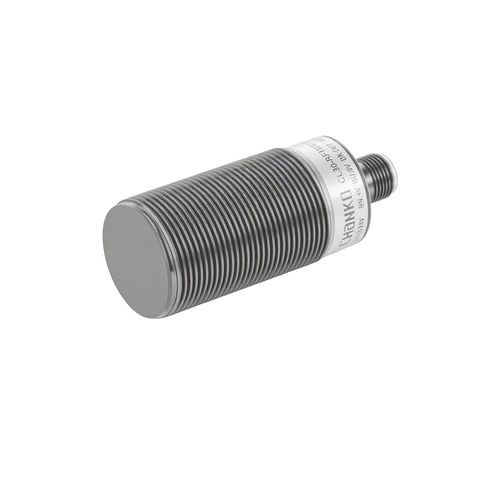

Inductive proximity sensor CL30-RF15DLF1-AcylindricalM30with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, 2-wire
- Supply voltage
- DC
- Mounting
- threaded
- Material
- brass, PVC, PTFE
- Applications
- for welding
- Other characteristics
- non-contact
- Measuring range
1.5 cm
(0.59 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Key features / specifications summary
- Model: CL30-RF15DLF1-A
- Series: CL30
- Product type: weld-resistant inductive proximity sensor
- Sensing distance: 15 mm
- Housing: cylindrical (M30), embedded mounting
- Sensing principle: inductive
- Output: DC 2-wire NO (normally open)
- Cable length: 2 m
Technical specifications
- Sensing direction: frontal
- Response frequency: 600 Hz
- Response time: 800 μs
- Detectable target: metal objects
- Hysteresis: less than 10% of sensing distance
- Standard test target: iron 45 × 45 × 1 mm
- Temperature drift: within ±10% of sensing distance over -25 ~ +70 °C relative to +23 °C
- Materials: housing brass with PTFE plating; sensing face PTFE; cable PVC
- Accessories: certificate of conformity
Mechanical / electrical parameters
- Supply voltage: DC 12 ~ 24 V
- Power supply: DC two-wire
- Protection rating: IP67
- Connection: connector
- Signal type: switching
- Operating mode: normally open (NO)
- Mounting: embedded
- Indicator: red output LED
- Voltage influence: within ±1% variation of sensing distance at ±15% supply voltage change
- Insulation resistance: ≥ 50 MΩ (DC 500 V megger) between live parts and housing
- Switching capacity: 3–100 mA
- Leakage current: ≤ 0.8 mA
- Shock resistance: 500 m/s², 3 times each X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration: 10–55 Hz, 1.5 mm double amplitude, 2 h each X, Y, Z
- Weight: approx. 217 g
Operating environment
- Operating temperature: -25 ~ +70 °C
Key features / specifications summary
- Model: CL30-RF15DLF1-A
- Series: CL30
- Sensing distance: 15 mm
- Housing: M30, embedded mounting
- Output: DC 2-wire, NO, switching
- Supply: DC 12 ~ 24 V
- Protection: IP67
- Response: 600 Hz / 800 μs
- Materials: brass with PTFE plating / PTFE sensing face / PVC cable
