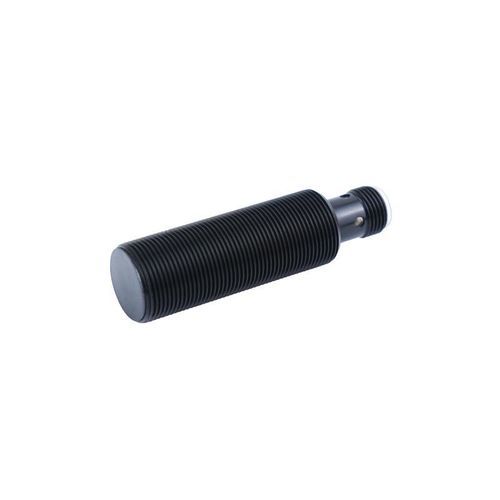

Inductive proximity sensor CL18-RF8DLF1-AcylindricalM182-wire
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- 2-wire
- Electrical connection
- bare wires
- Supply voltage
- DC
- Mounting
- flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Measuring range
0.8 cm
(0.31 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Recommended applications
Features / Specifications (summary)
- Product family: CL18 series inductive proximity sensors
- Model: CL18-RF8DLF1-A
- Type: solder-resistant (weld-splash resistant)
- Sensing principle: inductive (metal detection)
- Housing size: M18, cylindrical
- Sensing distance: 8 mm
- Output: DC 2‑wire, normally open (NO)
- Cable length: 2 m
Technical specifications
- Sensing distance: 8 mm (standard target: Fe 24×24×1 mm)
- Sensing direction: frontal
- Switching frequency: 600 Hz
- Response time: 800 μs
- Hysteresis: <10% of sensing distance
- Temperature drift: within ±10% over -25 to +70 °C vs. +23 °C reference
- Materials: housing brass with Teflon plating; sensing face Teflon; cable PVC
- Accessories: 2 nuts, 1 internal tooth washer, certificate
Mechanical / Electrical parameters
- Output type: DC 2‑wire NO (normally open)
- Supply voltage: DC 12–24 V
- Protection rating: IP67
- Connection: connector
- Signal type: switch output
- Mounting: flush (embeddable)
- Indicator: red output LED
- Voltage influence: <±1% change in sensing distance for ±15% supply variation
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Switching capacity: 3–100 mA
- Leakage current: ≤0.8 mA
- Shock resistance: 500 m/s², 3 shocks each axis
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h each axis
- Weight: approx. 153 g
Operating environment
- Operating temperature: -25 to +70 °C
Recommended applications
- Electronics manufacturing (3C)
- Automated parking systems
- Logistics and warehousing
Features / Specifications (summary)
- Model: CL18-RF8DLF1-A
- Series: CL18
- Type: solder-resistant inductive proximity sensor
- Sensing distance: 8 mm (Fe 24×24×1 mm)
- Form factor: M18 cylindrical, flush mount
- Supply / output: DC 12–24 V, DC 2‑wire NO
- Protection: IP67
- Operating temperature: -25 to +70 °C
- Material: brass with Teflon plating, Teflon sensing face, PVC cable
- Accessories: 2 nuts, 1 internal tooth washer, certificate
Catalogs
No catalogs are available for this product.
See all of CHANKO SENSOR‘s catalogsOther CHANKO SENSOR products
CL Series Inductive Proximity Sensor Solder-proof Type
