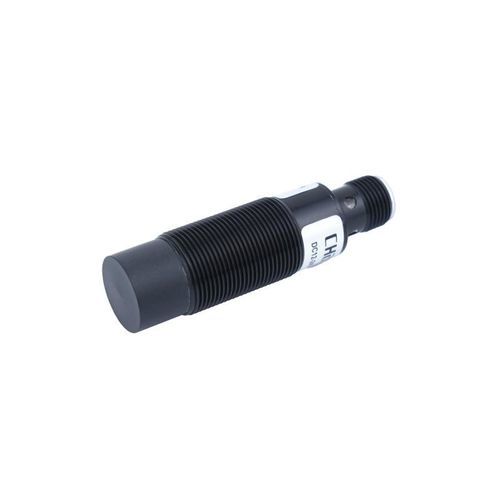

Inductive proximity sensor CL18-RN16DNF1-AcylindricalM18with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- with switching function, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Applications
- for welding
- Other characteristics
- 3-wire
- Measuring range
1.6 cm
(0.63 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Technical specifications
Mechanical/Electrical parameters
Environmental conditions
Model & accessories
- Product type: anti-spatter inductive proximity sensor
- Model: CL18-RN16DNF1-A
- Detection distance: 16 mm
- Housing: M18 cylindrical
- Output: NPN NO (normally open)
- Cable length: 2 m (or connector)
Technical specifications
- Detection object: metal (standard target: iron 48×48×1 mm)
- Response frequency: 150 Hz
- Response time: 3 ms
- Hysteresis: <10% of detection distance
- Temperature drift: within ±10% of detection distance in range -25~+70°C (reference +23°C)
- Materials: housing brass with PTFE plating; sensing face PTFE; cable PVC
- Accessories: 2 nuts, 1 internal tooth washer, conformity certificate
Mechanical/Electrical parameters
- Supply voltage: DC 12–24 V
- Power supply: three-wire DC
- Protection rating: IP67
- Connection: connector
- Signal type: switching
- Operating mode: normally open (NO)
- Mounting: non-flush (non-embedded)
- Current consumption: <13 mA
- Indicator: red output LED
- Protection circuits: short-circuit protection, power surge protection
- Voltage influence: within ±15% of rated supply, detection distance change within ±1%
- Load current: <200 mA
- Insulation resistance: >50 MΩ (DC 500 V)
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min (live parts to housing)
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
- Weight: approx. 144 g
Environmental conditions
- Operating temperature: -25 ~ +70 °C
Model & accessories
- Model: CL18-RN16DNF1-A
- Included: nuts ×2, internal tooth washer ×1, conformity certificate
Catalogs
No catalogs are available for this product.
See all of CHANKO SENSOR‘s catalogsOther CHANKO SENSOR products

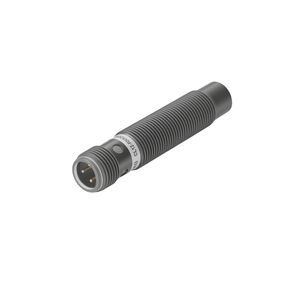

CL Series Inductive Proximity Sensor Solder-proof Type
