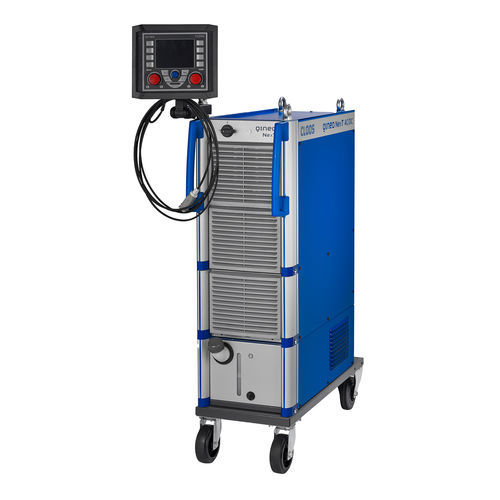

MIG-MAG welding power supply QINEO NexT-452-AC Premium

solid wirethree-phaseAC

Product overview
The Qineo NexT 452 AC Premium from CLOOS is an inverter-based MIG/MAG welding power source designed for automated and industrial welding applications. The CLOOS-developed inverter module provides high-frequency pulse control for precise arc regulation. The AC module adds the Cold Weld AC process to extend the machine's application range.

Advantages

• Advanced inverter technology for consistent weld quality
• Expanded application range with Cold Weld AC welding process
• Robust housing and service-friendly design for high availability
• Prepared for common industrial interfaces
• Premium control module optimized for high-level welding tasks
• Extensive accessories for tailored configuration

Technical specifications

• Base materials: Aluminum; Coated materials; Chrome-nickel; High-strength steel; Steel; Heat-resistant steel; Heat-sensitive materials
• Processes: Vari Weld; Speed Weld; Root Weld; Rapid Weld; Rapid Pulse Weld; Motion Vari Weld; Motion Control Weld; Mix Vari Control Weld; Control Weld; Cold Weld
• Methods: MIG brazing; MIG/MAG single-wire; MIG/MAG single-wire AC; MIG/MAG single-wire pulsed; MIG/MAG tandem
• Product group: Welding power source
• Design: External wire feeder
• Application: Automotive
• Dimensions (L x W x H): 805 x 348 x 643 mm
• Connection cable: 4 x 6 mm²
• Adjustment range: 350 A - 600 A
• Weight: 99 kg
• Insulation class: F
• Cooling: F
• Open-circuit voltage: 75 V
• Supply fuse (400 V): 32 A
• Supply voltage: 380 V - 480 V / 50 Hz / 3-ph
• Protection rating: IP 23
• Welding current: 20 A - 450 A
• Welding current 100% duty cycle: 350 A / 31.5 V
• Welding current 60% duty cycle: 450 A / 36.5 V
