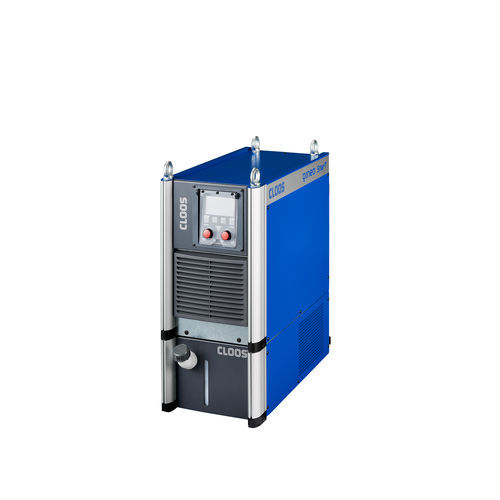

MIG-MAG welding power supply QINEO StarT-502 Premium

solid wirethree-phasepulsed DC

Subline
QINEO StarT-502 Premium for automated welding

Overview
Simply weld better with the QINEO StarT: The welding power source provides an easy entry into automated welding. Use the four available CLOOS welding processes in addition to standard processes so you can start welding immediately without lengthy parameter searches. Numerous optional components and functions allow configuration to match your automated welding tasks.

Benefits

• High-quality components with an optimized price/performance ratio and consistent welding characteristics
• Faster setup with preset parameters for four CLOOS welding processes
• Simple, quick and intuitive operation via the MasterPlus Compact operating module
• Prepared for many commonly used standard interfaces
• Modular design and extensive accessories for flexible application-specific configurations

Technical details (table)
Base materials: Aluminium; Chrome-nickel; High-strength steel; Steel
Processes: Control Weld; Mix Vari Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Vari Weld
Procedures: MIG Brazing; MIG/MAG single wire; MIG/MAG single wire Pulse
Product range: Welding power source
Design: External wire drive
Application: Automotive
Dimensions L/W/H: 805 x 348 x 498 mm
Supply cable: 4 x 6 mm²
Weight: 56 kg
Insulation class: F
Cooling: F
Open-circuit voltage: 78.7 V
Line protection/400V: 32 A
Mains voltage: 380 V - 400 V / 50 Hz / 3-ph
Protection class: IP 23
Welding current: 15 A - 500 A
Welding current 100% ED: 400 A
Welding current 60% ED: 500 A / 39 V

Characteristics / Technical specifications

• Base materials: Aluminium; Chrome-nickel; High-strength steel; Steel
• Processes: Control Weld; Mix Vari Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Vari Weld
• Procedures: MIG Brazing; MIG/MAG single wire; MIG/MAG single wire Pulse
• Product range: Welding power source
• Design: External wire drive
• Application: Automotive
• Dimensions L/W/H: 805 x 348 x 498 mm
• Supply cable: 4 x 6 mm²
• Weight: 56 kg
• Insulation class: F
• Cooling: F
• Open-circuit voltage: 78.7 V
• Line protection/400V: 32 A
• Mains voltage: 380 V - 400 V / 50 Hz / 3-ph
• Protection class: IP 23
• Welding current: 15 A - 500 A
• Welding current 100% ED: 400 A
• Welding current 60% ED: 500 A / 39 V
