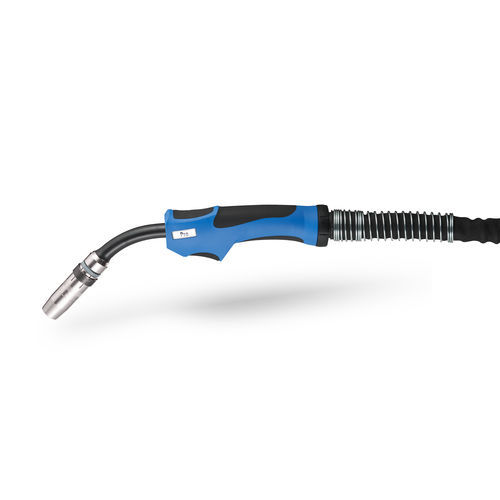

MIG-MAG welding torch QINEO-MHW-410 Eco

water-cooledmanual

Product overview
The QINEO-MHW-410 Eco manual welding torch from Cloos is a water-cooled torch designed for welding currents up to 410 A. The torch features a highly efficient water feed within the torch body to ensure high cooling capacity and long consumable life. An ergonomic handle with silicone inlays provides a slip-proof grip for manual operation. Suitable for continuous use with a 100% duty cycle and an adjustable range of 350–500 A.

Benefits

• Optimum gas coverage in a compact design for good accessibility in narrow components
• Ergonomic handle with silicone inlays for secure grip and reduced wrist strain
• High cooling capacity due to efficient internal water flow, extending consumable life

Technical details
Processes: Control Weld; Fine Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Vari Weld
Methods: MIG Brazing; MIG/MAG single wire; MIG/MAG single wire AC; MIG/MAG single wire Pulse
Product area: Welding torch
Application: Manual
Adjustment range: 350 A - 500 A
Duty cycle: 100%
Cooling type: Water-cooled

Technical specifications

• Model designation on page: MHW-410 Eco / QINEO-MHW-410 Eco
• Design: Water-cooled manual welding torch
• Rated/designed welding current: up to 410 A
• Adjustment range shown: 350 A - 500 A
• Duty cycle: 100%
• Cooling: Water-cooled; highly efficient water feed in the torch body
• Handle: Ergonomic with silicone inlays, slip-proof
• Highlighted benefits: Optimum gas coverage, compact design, good accessibility in narrow components, reduced wrist strain, high cooling capacity, long consumable life
• Supported welding processes: Control Weld; Fine Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Vari Weld
• Supported methods: MIG Brazing; MIG/MAG single wire; MIG/MAG single wire AC; MIG/MAG single wire Pulse
• Product category: Manual welding torch
