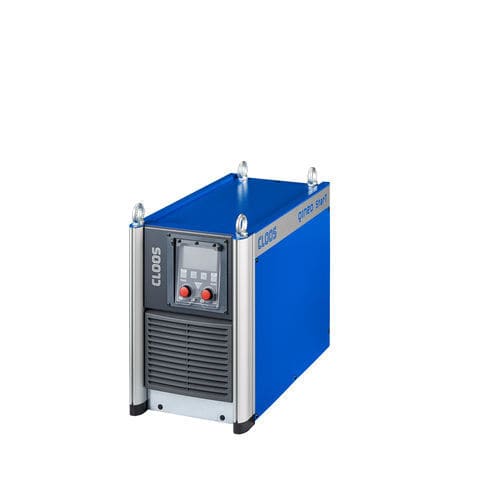

MIG-MAG welding power supply QINEO StarT-406 Premium

solid wirethree-phaseDC

Product overview
The QINEO StarT-406 Premium welding power source provides an accessible entry into automated welding. It supports the five CLOOS welding processes in addition to standard MIG/MAG modes and includes the energy-reduced, current-controlled Fine Weld short-arc process for reduced spatter. Fine Weld is particularly suitable for thin, coated sheets and fine visible weld seams. The unit is modular and can be equipped with optional components to match individual automation tasks. Control is performed via the MasterPlus Compact operating module and the system is prepared for common industrial interfaces.

Benefits

• Component selection aimed at balanced price/performance and reliable welding behaviour
• Fine Weld process with minimised spatter for improved results on thin and coated materials
• Ready-to-use preset parameters for five CLOOS welding processes to shorten setup time
• Intuitive operation via the MasterPlus Compact control module
• Prepared for common standard interfaces used in automation
• Modular design and extensive accessories for flexible adaptation to application requirements

Technical details

• Base materials: Aluminium; Chrome-nickel; High-strength steel; Steel
• Available processes: Control Weld; Fine Weld; Mix Vari Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Speed Weld; Vari Weld
• Methods: MIG brazing; MIG/MAG single wire; MIG/MAG single wire Pulse
• Product category: Welding power source
• Configuration: External wire drive
• Application area: Automotive
• Dimensions (L x W x H): 805 x 348 x 498 mm
• Connection cable: 4 x 6 mm²
• Weight: 56 kg
• Insulation class: F
• Cooling type: F
• No-load voltage: 78.7 V
• Mains fuse (400 V): 32 A
• Mains voltage: 380 V - 400 V / 50 Hz / 3-ph
• Protection rating: IP 23
• Welding current 100% ED: 350 A / 31.5 V
• Welding current 60% ED: 400 A / 34 V
