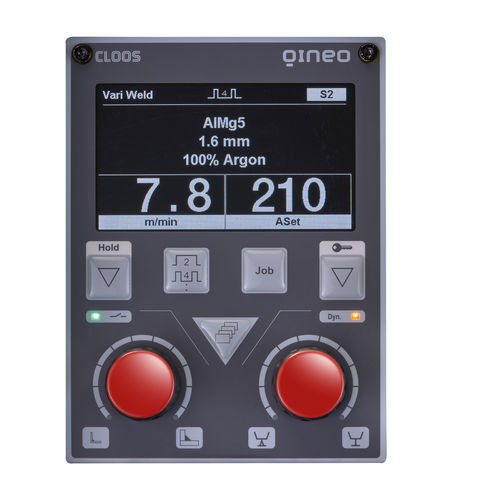

USB HMI QN-OP Master Plus Compact

compactaccess controloperator interface

Product description
The MasterPlus Compact control module provides all functions required for demanding manual welding. It is designed for simple operation and a clear, user-friendly display. Jobs enable storage of parameter sets and ensure reproducibility of weld quality in accordance with WPS. Five freely programmable quick-access memories allow direct access to the most important personal jobs. Optional interfaces include a USB port for loading and saving jobs, characteristic curves and configurations, and an optional Personal Access Key for user management.

Advantages

• Intuitive operation: clear display for high usability, optimized for manual welding
• Job memory: multiple weld parameter sets ensure reproducible weld quality in line with WPS
• Job favorites: very fast access to the five main personal settings (jobs)
• Memory for four welding circuits: apply identical welding settings across different workstations without additional adjustments

Technical details
Product family: Control modules
Application: Manual

Characteristics / Specifications

• Model: QN-OP Master Plus Compact
• Control module for manual welding
• Clear display for parameter visualization and control
• Job memory for parameter sets to ensure reproducibility
• Five freely programmable quick-access memories (job favorites)
• Memory for up to four welding circuits to transfer identical settings between workstations
• Optional interfaces: USB port for loading/saving jobs, characteristic curves and configurations
• Optional access solution: Personal Access Key for user management
