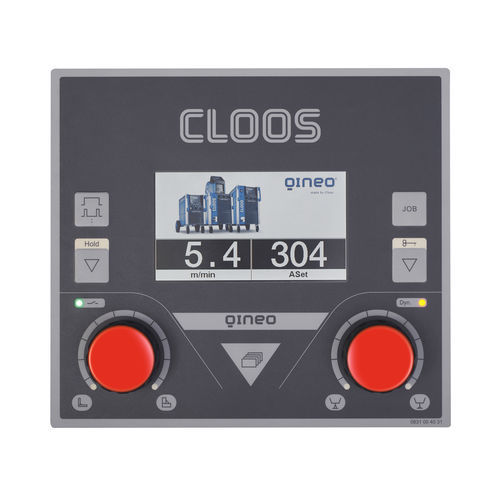

USB HMI QN OP MasterPlus

programmableindustrialvisualization

Product overview
The MasterPlus operating module provides comprehensive controls for demanding manual welding. Designed for straightforward operation and clear visualization on a 4.3" display, it stores individual parameter sets (Jobs) to ensure reproducibility and compliance with welding procedure specifications (WPS). Five freely programmable quick-save memories offer direct access to frequently used personal setups. Optional features include a USB connector for loading/saving Jobs, characteristic curves and configurations, and a Personal Access Key (PAK) for user management.

Benefits

• Intuitive operation: clear 4.3" display optimized for manual welding
• Quick access: five programmable favourites for personal Jobs
• Multi-station consistency: memory for 4 welding circuits to replicate identical settings across workstations

Technical details
Product area: Operating panel
Application: Manual welding

Technical specifications

• Display: 4.3" clear representation
• Storage of individual parameter settings (Jobs) for reproducibility (WPS)
• Five freely programmable quick-save memories
• Optional USB connector for loading/saving Jobs, characteristic curves and configurations
• Optional Personal Access Key (PAK) for user management
• Memory for 4 welding circuits to replicate settings across workstations
• Product area: Operating panel
• Application: Manual welding
