MIG-MAG welding power supply QINEO NexT-452 Premium
solid wirethree-phaseDC

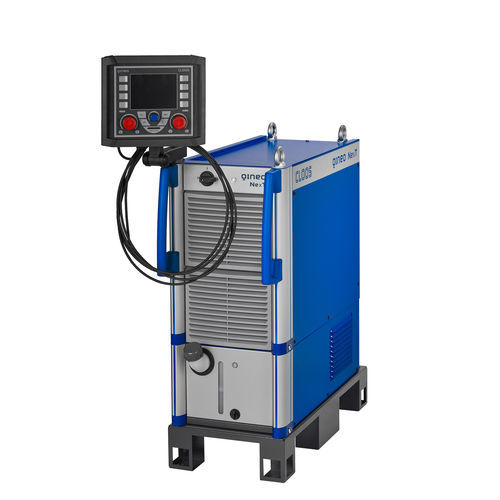

MIG-MAG welding power supply - QINEO NexT-452 Premium - CLOOS - solid wire / three-phase / DC
MIG-MAG welding power supply - QINEO NexT-452 Premium - CLOOS - solid wire / three-phase / DC
Add to favorites
Compare this product

Characteristics

Technique
MIG-MAG
Consumables
solid wire
Power supply
three-phase
Output current
DC, pulsed DC
Material
for steel, for stainless steel, for aluminum
Other characteristics
inverter, automated, with separate wire feeder, for Industry 4.0
Intensity

Max.: 450 A

Min.: 20 A

Description

Product overview
  • Product: Welding power source QINEO NEXT 452 Premium
  • Brand: CLOOS
  • Commercial designation: QINEO NEXT 452
  • Application: Industrial MIG/MAG welding and automated welding systems (automotive)
  • Configuration: Inverter power source with external wire feed


Key benefits
  • Inverter technology with high switching frequency for improved arc control and precise welding results
  • Prepared for common industrial interfaces to simplify integration into automated production lines
  • Premium control module enabling advanced parameter setting and process control
  • Service-friendly design for easier maintenance and reduced downtime
  • Extensive optional accessories for adaptation to specific welding tasks


Technical specifications
  • Base materials: Aluminium; Chromium-nickel; High-strength steel; Steel
  • Supported processes: Control Weld; Mix Vari Control Weld; Motion Control Weld; Motion Vari Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Speed Weld; Tandem Weld; Vari Weld
  • Welding methods: MIG brazing; MIG/MAG single wire; MIG/MAG single wire pulse; MIG/MAG tandem
  • Product range: Welding power source
  • Design: External wire drive
  • Application area: Automotive
  • Dimensions (L x W x H): 819 x 348 x 498 mm
  • Connection cable: 4 x 6 mm²
  • Weight: 67 kg
  • Insulation class: F
  • Cooling type: F
  • Open-circuit voltage: 80 V
  • Mains fuse (400 V): 32 A
  • Mains voltage: 380 V - 480 V / 50 Hz / 3-ph
  • Protection class: IP 23
  • Welding current: 20 A - 450 A
  • Welding current 100% ED: 350 A / 31.5 V
  • Welding current 60% ED: 450 A / 36.5 V


Characteristics / specifications
  • Base materials: Aluminium; Chromium-nickel; High-strength steel; Steel
  • Supported processes: Control Weld; Mix Vari Control Weld; Motion Control Weld; Motion Vari Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Speed Weld; Tandem Weld; Vari Weld
  • Welding methods: MIG brazing; MIG/MAG single wire; MIG/MAG single wire pulse; MIG/MAG tandem
  • Product range: Welding power source
  • Design: External wire drive
  • Application area: Automotive
  • Dimensions (L x W x H): 819 x 348 x 498 mm
  • Connection cable: 4 x 6 mm²
  • Weight: 67 kg
  • Insulation class: F
  • Cooling type: F
  • Open-circuit voltage: 80 V
  • Mains fuse (400 V): 32 A
  • Mains voltage: 380 V - 480 V / 50 Hz / 3-ph
  • Protection class: IP 23
  • Welding current: 20 A - 450 A
  • Welding current 100% ED: 350 A / 31.5 V
  • Welding current 60% ED: 450 A / 36.5 V
