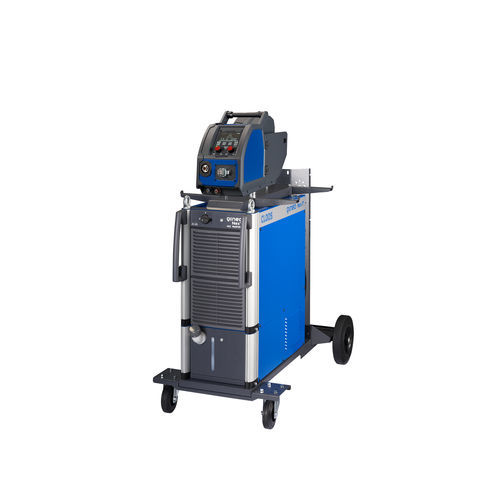

MIG-MAG welding power supply QINEO NexT-602 Master

solid wirethree-phaseDC

Product description
The QINEO NexT-602 Master is a compact welding power source integrating the essential components required for versatile manual welding. Its inverter unit, developed by CLOOS, operates at high pulse frequency to provide precise arc control and reproducible weld results across complex tasks. Modular options and adjustable wire-feed configurations allow adaptation to different processes and production needs.

Benefits

• High-frequency inverter technology for accurate arc control
• Robust construction and service-friendly design for high availability
• Choice of wire drive units to match specific welding tasks
• MasterPlus compact control module for intuitive operation
• Wide range of accessories for application-specific configuration

Technical details

• Base materials: Aluminium; Chrome‑nickel; High‑strength steel; Steel
• Processes: Control Weld; Mix Vari Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Speed Weld; Vari Weld
• Methods: MIG/MAG single wire; MIG/MAG single wire Pulse
• Product family: Welding power source
• Configuration: External wire drive
• Application: Manual welding
• Dimensions L/W/H: 819 x 348 x 498 mm
• Supply cable: 4 x 10 mm²
• Welding current range: 20 A - 600 A
• Control setting range: 350 A - 600 A
• Weight: 67 kg
• Insulation class: F
• Cooling: F
• Open circuit voltage: 80 V
• Mains fuse (at 400 V): 50 A
• Mains voltage: 380 V - 480 V / 50 Hz / 3‑ph
• Protection class: IP 23
• Welding current 100% ED: 500 A / 39 V
• Welding current 60% ED: 600 A / 44 V

Downloads (document names)

• BA QN NexT DE.pdf
• ET QN NexT DE.pdf
• QN3163 QINEO NexT Manual DE.pdf

Characteristics / technical specifications

• Base materials: Aluminium; Chrome‑nickel; High‑strength steel; Steel
• Processes: Control Weld; Mix Vari Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Speed Weld; Vari Weld
• Methods: MIG/MAG single wire; MIG/MAG single wire Pulse
• Product family: Welding power source
• Configuration: External wire drive
• Application: Manual welding
• Dimensions L/W/H: 819 x 348 x 498 mm
• Supply cable: 4 x 10 mm²
• Control setting range: 350 A - 600 A
• Weight: 67 kg
• Insulation class: F
• Cooling: F
• Open circuit voltage: 80 V
• Mains fuse (at 400 V): 50 A
• Mains voltage: 380 V - 480 V / 50 Hz / 3‑ph
• Protection class: IP 23
• Welding current range: 20 A - 600 A
• Welding current 100% ED: 500 A / 39 V
• Welding current 60% ED: 600 A / 44 V
