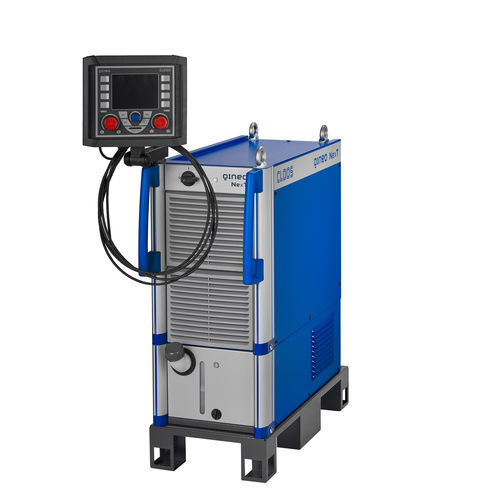

MIG-MAG welding power supply QINEO NexT-602 Premium
solid wirethree-phasepulsed DC

MIG-MAG welding power supply - QINEO NexT-602 Premium - CLOOS - solid wire / three-phase / pulsed DC
MIG-MAG welding power supply - QINEO NexT-602 Premium - CLOOS - solid wire / three-phase / pulsed DC
Add to favorites
Compare this product

Characteristics

Technique
MIG-MAG
Consumables
solid wire
Power supply
three-phase
Output current
pulsed DC
Material
for steel, for stainless steel, for aluminum
Other characteristics
inverter, electronic, automated, with separate wire feeder, high-performance
Intensity

Min.: 20 A

Max.: 600 A

Description

Overview
The QINEO NexT-602 Premium by CLOOS is a high-frequency inverter welding power source designed for automated welding applications. Its integrated inverter unit delivers precise arc control for consistent weld results across a range of processes. The system is prepared for common industrial interfaces and can be configured with a variety of optional modules to match production requirements.

Benefits
  • High-frequency inverter technology for improved arc stability and weld quality
  • Robust design and user-oriented controls to support high availability in production environments
  • Ready for standard automation interfaces and integration
  • Premium operating module tailored for demanding welding tasks
  • Wide range of accessories and options for application-specific configuration


Technical details
Manufacturer: CLOOS
Model: QINEO NexT-602 Premium
Supported base materials: Aluminium; Chrome-nickel; High-strength steel; Steel
Supported processes: Control Weld; Mix Vari Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Speed Weld; Tandem Weld; Vari Weld
Methods: MIG brazing; MIG/MAG single wire; MIG/MAG single wire pulse; MIG/MAG tandem welding
Product category: Welding power source
Form factor: External wire drive
Dimensions (L x W x H): 819 x 348 x 498 mm
Cable connection: 4 x 10 mm²
Weight: 67 kg
Insulation class: F
Cooling type: F
No-load voltage: 80 V
Supply fuse (400 V): 50 A
Supply voltage: 380 V - 480 V / 50 Hz / 3-ph
Protection rating: IP 23
Welding current range: 20 A - 600 A
Welding current (100% ED): 500 A / 39 V
Welding current (60% ED): 600 A / 44 V

Characteristics / Technical specifications
  • Application area: Automated welding, Automotive production
  • Control and configuration: High-frequency inverter control with advanced arc management
  • Integration: Prepared for standard interfaces used in automated cells
  • Adaptability: Multiple optional modules and accessories for production requirements
  • Protection & durability: IP23 protection rating suitable for industrial environments
