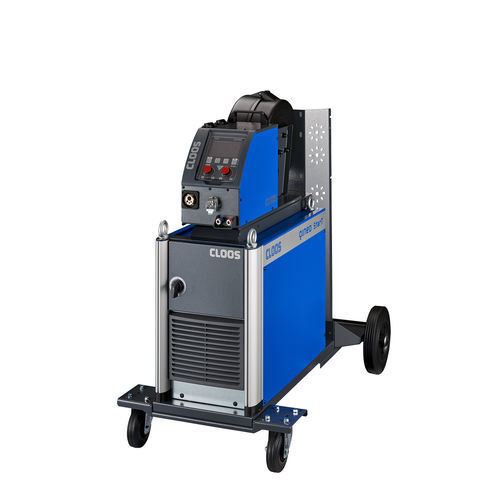

MIG-MAG welding power supply QINEO StarT-402 Master

solid wirethree-phasepulsed DC

Product overview
The QINEO StarT-402 Master is a compact welding power source for manual pulsed-arc applications. It provides an easy entry into manual pulsed MIG/MAG welding and integrates four preset CLOOS processes alongside standard welding modes, enabling rapid setup and consistent weld results. The modular design and optional components allow configuration to specific workshop requirements.

Benefits

• Optimised component selection for a competitive price/performance ratio and stable welding characteristics
• Quick start with preset parameters for four CLOOS welding processes to reduce setup time
• Selectable wire drive options to match different welding tasks and wire types
• Simple, fast and intuitive operation via the MasterPlus Compact control module
• Modular construction and wide range of accessories for flexible application and tailored configurations

Technical details
Base materials: Aluminium; chrome-nickel; steel
Processes: Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Vari Weld
Methods: MIG brazing; MIG/MAG single wire; MIG/MAG single wire pulse
Design: External wire drive
Application: Manual
Dimensions L/W/H: 805 x 348 x 498 mm
Supply cable: 4 x 6 mm²
Weight: 56 kg
Insulation class: F
Cooling: F
Open-circuit voltage: 78.7 V
Mains fuse / 400 V: 32 A
Mains voltage: 380 V - 400 V / 50 Hz / 3-phase
Protection class: IP 23
Welding current: 15 A - 400 A
Welding current 100% ED: 400 A

Characteristics / Technical specifications

• Base materials: Aluminium; chrome-nickel; steel
• Processes: Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Vari Weld
• Methods: MIG brazing; MIG/MAG single wire; MIG/MAG single wire pulse
• Design: External wire drive
• Application: Manual
• Dimensions L/W/H: 805 x 348 x 498 mm
• Supply cable: 4 x 6 mm²
• Weight: 56 kg
• Insulation class: F
• Cooling: F
• Open-circuit voltage: 78.7 V
• Mains fuse / 400 V: 32 A
• Mains voltage: 380 V - 400 V / 50 Hz / 3-phase
• Protection class: IP 23
• Welding current: 15 A - 400 A
• Welding current 100% ED: 400 A
