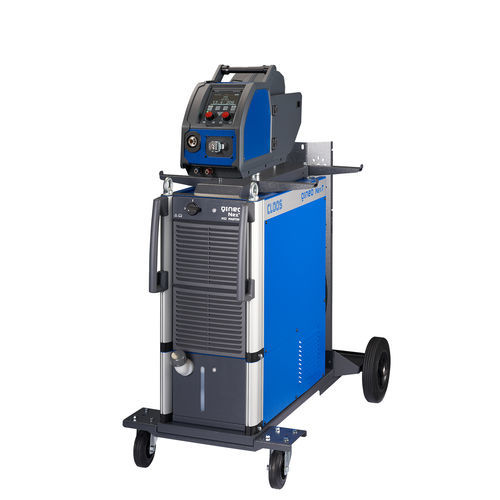

MIG-MAG welding power supply QINEO NexT-452 Master

solid wirethree-phasepulsed DC

Product description
The QINEO NexT-452 Master is a turnkey welding power source with integrated components and functions designed for manual welding applications. Its core is a high-frequency inverter power unit developed by CLOOS, providing enhanced arc control and consistent welding characteristics. Modular options and configurable functions allow the unit to be adapted to specific manual welding tasks.

Benefits

• High-frequency inverter technology developed by CLOOS for improved arc stability and weld quality
• Durable housing and service-friendly design for high availability in industrial environments
• Selectable external wire drive to match the welding task and wire type
• MasterPlus compact operating module for straightforward user control
• Wide range of accessories for task-specific configuration

Technical details (table)
Base materials: Aluminium; Chrome-nickel; High-strength steel; Steel
Processes: Control Weld; Mix Vari Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Speed Weld; Vari Weld
Method: MIG/MAG single wire; MIG/MAG single wire Pulse
Product category: Welding power source
Configuration: External wire drive
Application: Manual
Dimensions L/W/H: 819 x 348 x 498 mm
Connection cable: 4 x 6 mm²
Adjustment range: 350 A - 500 A
Weight: 67 kg
Insulation class: F
Cooling type: F
Open-circuit voltage: 80 V
Mains fuse (400 V): 32 A
Mains voltage: 380 V - 480 V / 50 Hz / 3-ph
Protection class: IP 23
Welding current: 20 A - 450 A
Welding current 100% ED: 350 A / 31.5 V
Welding current 60% ED: 450 A / 36.5 V

Characteristics / technical specifications

• Base materials: Aluminium; Chrome-nickel; High-strength steel; Steel
• Processes: Control Weld; Mix Vari Control Weld; Rapid Pulse Weld; Rapid Weld; Root Weld; Speed Weld; Vari Weld
• Method: MIG/MAG single wire; MIG/MAG single wire Pulse
• Product category: Welding power source
• Configuration: External wire drive
• Application: Manual
• Dimensions L/W/H: 819 x 348 x 498 mm
• Connection cable: 4 x 6 mm²
• Adjustment range: 350 A - 500 A
• Weight: 67 kg
• Insulation class: F
• Cooling type: F
• Open-circuit voltage: 80 V
• Mains fuse (400 V): 32 A
• Mains voltage: 380 V - 480 V / 50 Hz / 3-ph
• Protection class: IP 23
• Welding current: 20 A - 450 A
• Welding current 100% ED: 350 A / 31.5 V
• Welding current 60% ED: 450 A / 36.5 V
