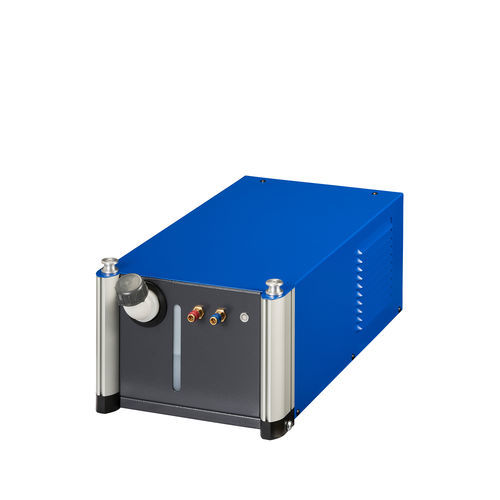

Water cooling system QN-EC-1200-P-FC

water-cooledrack

Overview
The cooling module is housed in an encapsulated enclosure mounted between the mounting platform and the inverter power unit. It cools welding torches during manual and automated TIG and MIG/MAG welding at high welding currents and long duty cycles. Coolant connections are located on the front panel for easy integration. The module’s components are installed in a pull-out service rack for rapid access; the water tank level indicator is illuminated.

Benefits

• High cooling capacity for manual and automated welding with high welding current and long duty cycle
• Encapsulated, separate housing protects inverter and power source components from potential water leakage
• Front coolant connection compatible with TIG and MIG/MAG power sources with integrated wire drive
• Quick and easy maintenance thanks to pull-out service rack and accessible component layout

Technical details
Product type: Cooling module
Application area: Automated and manual welding (TIG, MIG/MAG)

Technical specifications

• Designed to cool welding torches during high-duty-cycle welding operations
• Front-panel coolant connections for straightforward hose routing and installation
• Compatible with TIG and MIG/MAG welding power sources featuring integrated wire drive
• Cooling components mounted in a pull-out service rack for maintenance
• Encapsulated housing to reduce the risk to power source electronics from coolant leaks
• Installed between mounting platform and inverter power unit
• Illuminated water tank level indicator for clear fluid level monitoring
