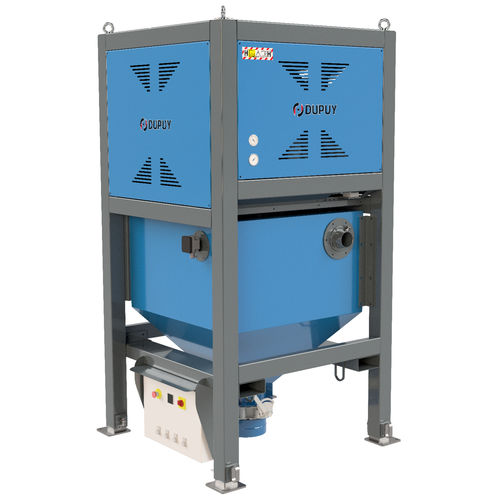

Industrial vacuum cleaner Silovac 600
sootthree-phasesteel

industrial vacuum cleaner
industrial vacuum cleaner
industrial vacuum cleaner
Add to favorites
Compare this product


Characteristics

Domain
industrial
Type
soot
Power source
three-phase
Container type
steel
Configuration
stationary, central, trailer-mounted
Other characteristics
ATEX, heavy-duty, explosion-proof, with self-cleaning filter, anti-static, with continuous bag system
Applications
for the metallurgical industry
Power

Min.: 12,500 W

Max.: 20,000 W

Capacity

600 l (158.5 gal)

Width

1,400 mm (55 in)

Height

Min.: 2,500 mm (98 in)

Max.: 4,000 mm (157 in)

Weight

Min.: 630 kg (1,388.912 lb)

Max.: 740 kg (1,631.421 lb)

Length

1,250 mm (49 in)

Air flow

1,100 m³/h (38,846.1 ft³/h)

Vacuum

Min.: 284 mbar (4 psi)

Max.: 441 mbar (6 psi)

Cable length

10 m (32'09")

Description

Silovac 600 - Three phase vacum cleaner with direct discharge - Large capacity The Industrial vacuum cleaner SILOVAC 600 in Silos is a model of vacuum cleaner with three-phase motor, suitable for constant and long-lasting use, which requires little maintenance because of the three-phase turbine of which it is equipped. Built with the most resistant materials, it can be integrated into a central vacuum system consisting of a central suction unit separated from the silos. The possibility of customization, with different dimensions and powers, is very appreciated by professionals who want to make the most of the capacity of the silos and not compromise on its suction power. The square structure of the vacuum cleaner allows you to accumulate up to 600 liters of suction material inside. Ideal for the removal and disposal of solids and dust, its intelligent design allows it to integrate into your production facility according to your needs. The aspirated material is easily discharged in a drum or in a BIG-BAG bag, to optimize production times and to avoid the dispersion of dust in the air. This vacuum machine is equipped with an automatic shaker and a compressor on board the machine to ensure a constant and excellent cleaning of the filters with high surface. Silovac 600 in 7 points: Three-phase side channel motor with power from 12.5 to 20kw. Construction with 5 mm thick industrial steel Various choice of discharge modes : butterfly valve, guillotine, tilting door... Quick and easy BIG-BAG filling option Forklift frame for handling with forklift : safe and effective
