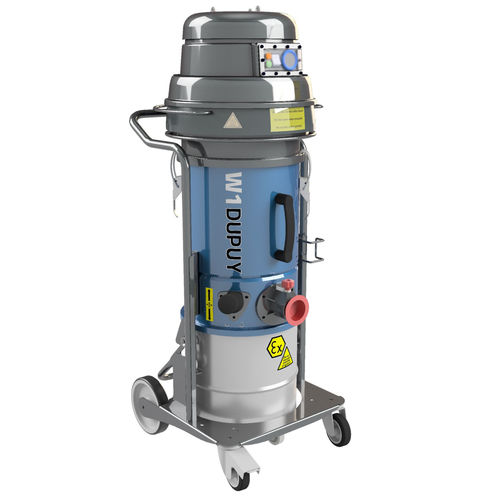

Industrial vacuum cleaner W1 EX 1/3D Z22
dustcompressed airwheel-mounted

Industrial vacuum cleaner - W1 EX 1/3D Z22 - DU-PUY srl - dust / compressed air / wheel-mounted
Industrial vacuum cleaner - W1 EX 1/3D Z22 - DU-PUY srl - dust / compressed air / wheel-mounted
Add to favorites
Compare this product

Characteristics

Domain
industrial
Substance vacuumed
dust
Power source
compressed air
Configuration
wheel-mounted
Container type
stainless steel
Other characteristics
ATEX, anti-static
Applications
for the pharmaceutical industry
Power

1.1 kW

Capacity

15 l
(3.9626 gal)

Air flow

Min.: 0 m³/s
(0 ft³/s)

Max.: 0.1 m³/s
(6,356.6 ft³/s)

Vacuum

Min.: 0 mbar
(0 psi)

Max.: 235 mbar
(3 psi)

Noise level

76 dB

Weight

32 kg
(70.55 lb)

Height

107 cm
(42.1 in)

Length

43 cm
(16.9 in)

Width

40 cm
(15.7 in)

Description

This ATEX certified vacuum cleaner stands out as the most compact and ergonomic in its segment. It is designed to safely remove dust and liquids in working environments classified as medium explosion risk areas. It integrates the characteristics of robustness, high performance and filtering capacity typical of an industrial vacuum cleaner, with the practicality of use typical of a traditional vacuum cleaner. Every aspect is carefully taken care of: a handle on the container facilitates transport in a horizontal position, while a trolley equipped with 4 wheels of which 2 pivoting facilitate movement inside the premises. A second handle allows you to lift the engine head for filter inspection or as an alternative for transporting the machine. To ensure efficient vacuuming over time, we have implemented an innovative filter cleaning system: a filter shaker lever promotes the detachment of accumulated materials, ensuring optimal performance. This machine is ideal for the simultaneous collection of dust, waste and liquids, thanks to the variety of accessories included. The suction is developed by a single-phase carbon bypass motor which guarantees rapid cooling in case of overheating. A solid plastic head protects the engine from possible impacts and intrusions from external bodies, keeping the noise level to a minimum. Inside the steel filter chamber there is a polyester pocket filter, which protects the suction unit, ensures high dust retention and guarantees the purity of the outgoing air.
