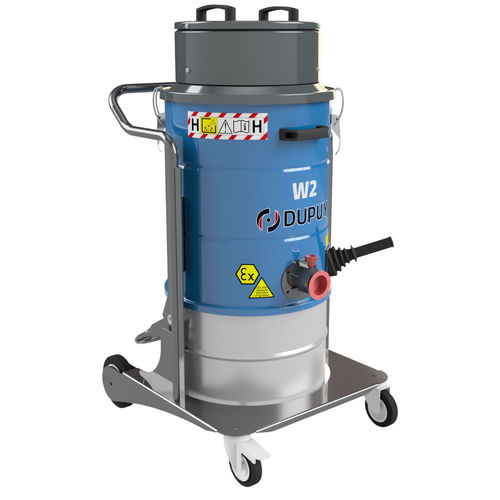

Industrial vacuum cleaner W2 AIR-EX 7V 1/3D Z22
dustcompressed airwheel-mounted

Industrial vacuum cleaner - W2 AIR-EX 7V 1/3D Z22 - DU-PUY srl - dust / compressed air / wheel-mounted
Industrial vacuum cleaner - W2 AIR-EX 7V 1/3D Z22 - DU-PUY srl - dust / compressed air / wheel-mounted
Add to favorites
Compare this product

Characteristics

Domain
industrial
Substance vacuumed
dust
Power source
compressed air
Configuration
wheel-mounted
Number of motors
Venturi
Container type
stainless steel
Other characteristics
ATEX, anti-static
Capacity

50 l
(13.2086 gal)

Air flow

Max.: 150 m³/h
(5,297.2 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Vacuum

Max.: 362 mbar
(5 psi)

Min.: 0 mbar
(0 psi)

Noise level

78 dB

Weight

50 kg
(110.23 lb)

Height

110 mm
(4.3 in)

Length

63 cm
(24.8 in)

Width

57 cm
(22.4 in)

Description

The W2 AIREX 1/3D is an ATEX-certified industrial vacuum cleaner for safe extraction of dust and solids in medium explosion hazard areas. It provides high filtration efficiency due to the double level of filtration, which prevents explosion risks and spillage of the sucked-in material into the surrounding environment. Power is provided by a powerful 7- or 14-nozzle maintenance-free Venturi unit, with an outstanding balance between air consumption and performance. Power is provided by a powerful Venturi unit with 7 or 14 nozzles, without the need for maintenance, with an exceptional yield between air consumption and performance. The filtration system, made up of two bag filters, one for dust and one for liquids, and an H14 absolute filter, prevents the risks of explosion and leakage of the aspirated material into the surrounding environment. The AISI 304 stainless steel release container has a capacity of 60 litres.
