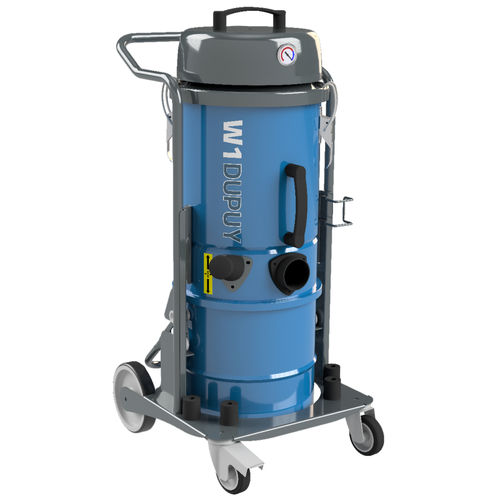

Industrial vacuum cleaner W1 AIR
drywetdust

Industrial vacuum cleaner - W1 AIR - DU-PUY srl - dry / wet / dust
Industrial vacuum cleaner - W1 AIR - DU-PUY srl - dry / wet / dust
Add to favorites
Compare this product

Characteristics

Domain
industrial
Type
dry, wet
Substance vacuumed
dust, liquids
Power source
compressed air
Configuration
wheel-mounted
Number of motors
Venturi
Other characteristics
compact, ATEX
Capacity

15 l
(3.9626 gal)

Air flow

Max.: 150 m³/h
(5,297.2 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Vacuum

Max.: 362 mbar
(5 psi)

Min.: 0 mbar
(0 psi)

Noise level

78 dB

Weight

25 kg
(55.12 lb)

Height

96 cm
(37.8 in)

Length

43 cm
(16.9 in)

Width

40 cm
(15.7 in)

Description

The W1 AIR industrial compressed air vacuum cleaner is designed to be used in places where compressed air is preferable to electricity. Compact, efficient and lightweight, it is equipped with a powerful Venturi unit that requires no maintenance. It is also suitable for Wet and Dry applications, i.e., vacuuming up liquids, solids and dust even simultaneously. Available in ATEX version. The suction is developed by a compressed air suction unit of the venturi type which requires an external compressor, not included. The suction unit is protected inside a solid steel head, containing sound-absorbing material that reduces noise to a minimum during service. The outlet air exhaust is directed downwards, so as not to annoy the operator or stir up dust in the surrounding environment. The control panel located on the head includes a supply pressure indicator and a vacuum indicator, useful for detecting any saturation of the filter. A handle on the head allows it to be easily lifted for possible inspection or replacement of the underlying filter. Inside the filter chamber there is a class L polyester pocket filter, which protects the suction unit, ensures high dust retention and guarantees the purity of the outgoing air, thanks to a large surface area (8000 cm2) and high filtration efficiency (3 microns). A manual cleaning system, composed of a vertically moving filter shaker, allows the operator to clean the filter effortlessly, and at any time, prolonging the life of the filter itself, preventing saturation and the consequent reduction in suction performance.
