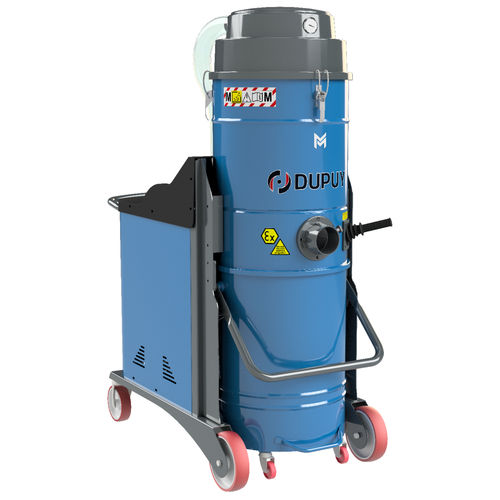

ATEX vacuum cleaner M 50 HV Z22
industrialdrydust

ATEX vacuum cleaner - M 50 HV Z22 - DU-PUY srl - industrial / dry / dust
ATEX vacuum cleaner - M 50 HV Z22 - DU-PUY srl - industrial / dry / dust
Add to favorites
Compare this product

Characteristics

Domain
industrial
Type
dry
Substance vacuumed
dust
Power source
electric
Configuration
wheel-mounted
Container type
stainless steel
Other characteristics
ATEX, anti-static
Applications
for the food industry
Power

4.3 kW

Capacity

100 l
(26.4172 gal)

Air flow

320 m³/h
(11,300.7 ft³/h)

Vacuum

353 mbar
(5 psi)

Noise level

75 dB

Weight

146 kg
(321.87 lb)

Height

160 cm
(63 in)

Length

119 cm
(46.9 in)

Width

65 cm
(25.6 in)

Description

The M series is the range of ATEX zone 22-certified three-phase industrial vacuum cleaners designed for all applications in low-hazard work areas and aimed at the safe removal of treated explosive dust. Ahigh M-classantistatic filtration surface area with convenient built-in manual filter cleaning system is combined with the versatility of a turbine that can be modulated according to customer needs. For an additional level of filtration efficiency, a HEPA H14 filter for fine and impalpable dust can be added. A convenient accessory holder built into the steel frame allows you to always have the right suction accessory with you. Equipped with a quick-release stainless steel container for the sucked material, with a capacity of 100lt, this wheeled vacuum will stand the test of time and the heaviest applications. The suction unit is a high-performance side channel turbine, with direct coupling between the drive shaft and the impeller. Since it has no transmission systems, it does not require any ordinary maintenance and is suitable for prolonged continuous service. Equipped with class M antistatic filter and absolute filter as standard to guarantee maximum filtration efficiency. It is possible to clean the filter using the integrated mechanical cleaning system: an external filter shaking lever shakes the filter with vertical movement, ensuring an effective and safe cleaning action, maintaining constant suction performance and preventing the dispersion of dust into the environment .
