Industrial vacuum cleaner M90
drydustliquids

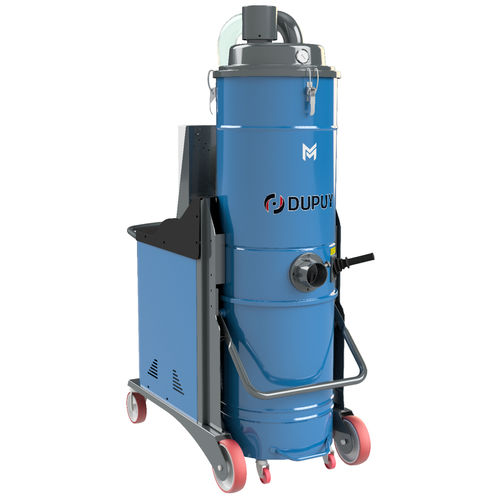

Industrial vacuum cleaner - M90  - DU-PUY srl - dry / dust / liquids
Industrial vacuum cleaner - M90  - DU-PUY srl - dry / dust / liquids
Add to favorites
Compare this product

Characteristics

Domain
industrial
Type
dry
Substance vacuumed
dust, liquids
Power source
three-phase
Configuration
wheel-mounted
Container type
steel
Other characteristics
compact
Applications
for the food industry
Power

7.5 kW

Capacity

100 l
(26.4172 gal)

Air flow

Max.: 700 m³/h
(24,720.3 ft³/h)

Vacuum

Max.: 392 mbar
(6 psi)

Noise level

77 dB

Weight

182 kg
(401.24 lb)

Height

180 cm
(70.9 in)

Length

119 cm
(46.9 in)

Width

65 cm
(25.6 in)

Description

The M90 is a powerful and reliable three-phase industrial vacuum cleaner suitable for vacuuming liquids, dust, and solids of all kinds, even the heaviest ones. Thanks to its power and large capacity, it can vacuum large quantities of material very quickly. Available PN model with an effective filtration system consisting of cartridges with a large filtering surface area and an innovative automatic pneumatic cleaning system with a counter-current air system. Particularly suitable for handling very fine dust in large quantities that could prematurely clog common filtration systems. The vacuum cleaner is equipped with a side-channel blower, in which the impeller is attached directly to the motor shaft, and without transmission systems. This aspect of vacuuming almost completely reduces component wear and tear and the resulting need for maintenance. The turbine produces a large vacuum combined with a high air flow rate, perfect for suctioning large quantities of materials, even for continuous service (even 24 hours a day). The control panel consists of a stop button panel, containing a circuit breaker. A vacuum gauge makes it possible to constantly monitor the vacuum level and saturation status of the filter, and detect any abnormalities in a timely manner. A double silencer reduces noise and dampens the impact of outgoing air.
