ATEX vacuum cleaner MHD 180 HP
industrialdrywet

ATEX vacuum cleaner
ATEX vacuum cleaner
Add to favorites
Compare this product


Characteristics

Domain
industrial
Type
dry, wet
Substance vacuumed
liquids, dust
Power source
three-phase
Configuration
mobile, low-noise, central
Applications
for the metallurgical industry
Other characteristics
compact, ATEX, heavy-duty
Power

15,000 W
(51,182.1 BTU/h)

Capacity

160 l
(42.3 gal)

Air flow

720 m³/h
(25,426.6 ft³/h)

Vacuum

530 mbar
(8 psi)

Noise level

78 dB

Weight

430 kg
(947.99 lb)

Cable length

10 m
(32'09" )

Height

1,990 mm
(78.3 in)

Length

1,620 mm
(63.8 in)

Width

770 mm
(30.3 in)

Description

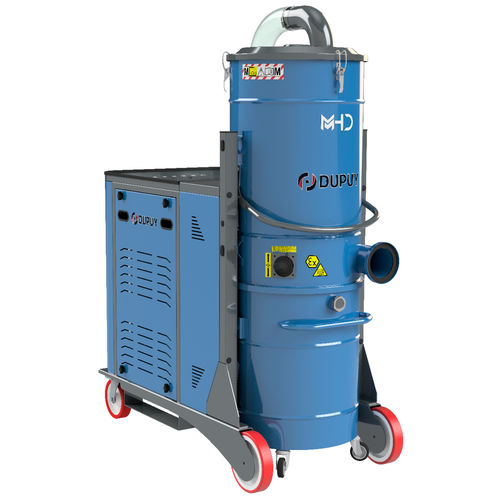

The ATEX Zone 22 certified MHD series of wheeled industrial vacuum cleaners is the ideal solution for extracting large quantities of solids, dusts and liquids in areas with a low risk of explosion. Thanks to the powerful side channel blower equipped, with powers available from 7.5 kW to 18.5 kW, the industrial vacuum cleaners of the MHD Z22 series are able to develop a very high air flow rate, perfect for the quick and easy suction of large quantities of material in areas that require the use of ATEX certified equipment. They can effortlessly remove any type of material and can be used in both mobile and centralised applications. They can be combined with the line of cyclonic separators to handle large volumes of material. An integrated manual filter shaking lever, a releasable container, a forklift-accessible frame and a large antistatic polyester filter are further distinguishing features of the ATEX-certified DU-PUY range of industrial vacuum cleaners.

Catalogs

No catalogs are available for this product.

See all of DU-PUY srl‘s catalogs

Other DU-PUY srl products

ATEX Certified Industrial Vacuum Cleaners
