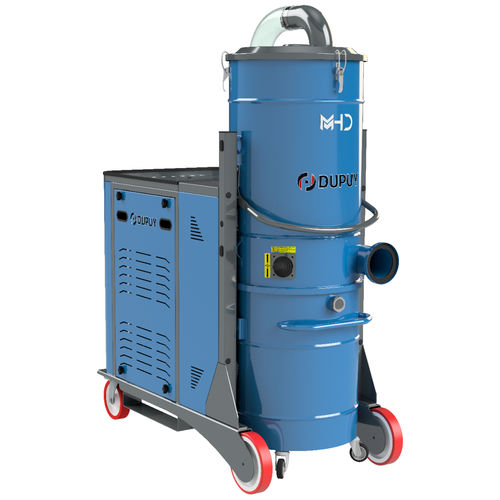

Industrial vacuum cleaner MHD 150

drywetliquids

The suction is provided by a vacuum unit of the side channel blower type, with direct coupling between the fan and the motor shaft and no transmission system. It is thus completely maintenance free, fit for round-the-clock 24 hours duty, very silent and provides outstanding suction performances; a vacuum gauge enables constant checking of the suction performance, and detecting possible clogging of the filter. The machine is equipped with a metallic electrical panel, CE standards, with Neoprene rubber cable 10 mt with 32amp plug with delta star triangle start. The turbine is equipped with a pressure relief valve. In case of completely closed suction hose, the valve provides cooling of the turbine through the environment air inlet. Filter unit The filter is placed and protected inside the steel filter chamber; the polyester star filter provides a filter surface of 70.000 cm2, and high filtration efficiency (class L, 3 micron). A manual filter shaker enables the user to clean the filter efficiently, by a vertical shaking movement, so as to detach most of the dust and maintain the filter clean, in order to increase its life and maintain the vacuum performance of the machine. The tangential suction inlet (Ø120 mm. diameter), placed below the filter, makes it possible to vacuum at the same time dust, solid and liquid material (the latter only within the capacity of the container), with no need to change or take out the filter.
