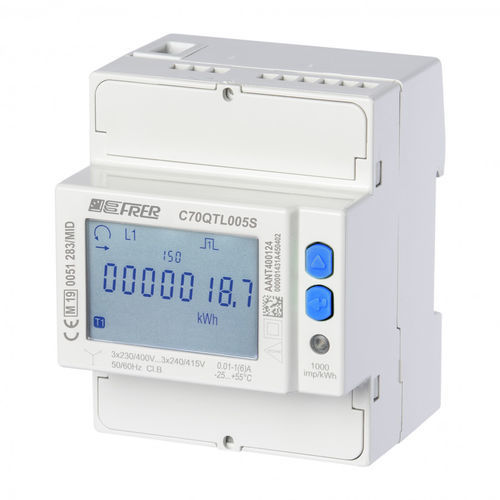

Three-phase electric energy meter C70QTL005S4CADDIN railpulse outputwith current transformer
Add to favorites
Compare this product
Characteristics
- Type
- three-phase
- Assembly
- DIN rail
- Other characteristics
- pulse output, with current transformer, multi tariff, MID certified, M-Bus
- Voltage
400 V
- Primary current
Max.: 5 A
Min.: 1 A
Description
MID Energy Meter for 3-phase 4-wire systems with CT input and M-bus communication. This device supports a 400V unbalanced system with a current range of 1-5 A. It features a double tariff system and a single pulse output, all housed in a compact 4 DIN module design.
- Type: MID Energy Meter
- System: 3-phase 4-wire unbalanced
- Voltage: 400V
- Current: 1-5 A (CT Input)
- Tariff: Double Tariff
- Pulse output: 1
- Communication: Built-in M-bus
- DIN modules: 4
Catalogs
general catalogue
512 Pages
