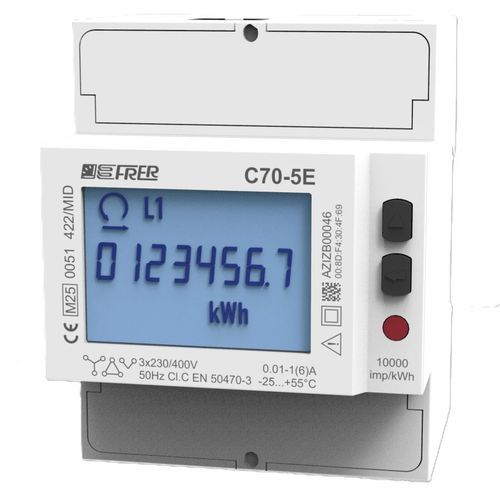

Three-phase electric energy meter C70QPL005E4CAD

DIN railmulti-functionMID certified

Description
Three-phase MID electricity meter for 3- and 4-wire networks. Designed for insertion on external current transformers (CT). Bidirectional active energy measurement in Class C (EN50470-3) with multi-measure capabilities. Includes 1 S0 pulse output and Ethernet communication. Integrated web server accessible from any browser without additional software for real-time viewing and data logging. Enclosure for 4 DIN modules.

Available documents

• Datasheet
• User manual
• Communication protocols
• Technical drawing (PDF)

Features / Technical specifications

• Type: MID electricity meter
• Application: three-phase 3- and 4-wire networks
• Nominal voltage: 400 V
• Connection: via external current transformers (CT)
• Working current: supports CT ratios for 5 A or 1 A secondary
• Energy direction: Bidirectional
• Active energy measurement class: Class C (EN50470-3)
• Functionality: Multi-measure
• Outputs: 1 S0 pulse output
• Communication: Ethernet
• Web interface: Integrated web server, browser access without additional software
• Installation: 4 DIN-module housing
