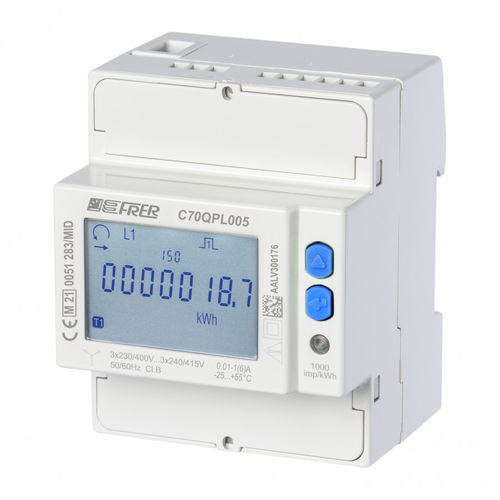

Three-phase electric energy meter C70QPL00504CAD

DIN railmulti tariffcommercial

Product overview
Modular MID-certified energy meter for industrial three-phase installations. Measures active energy in 3-phase 3-4 wire unbalanced systems. CT input (1–5 A) with nominal system voltage 400 V. Modular width: 4 DIN modules. Optical port for connection to dedicated communication modules. Two pulse outputs and double-tariff metering for monitoring and billing applications. Model: C70QPL00504CAD.

Main features

• MID-certified energy meter for legal billing
• Suitable for 3-phase 3-4 wire unbalanced systems
• Nominal voltage: 400 V
• Current input: 1–5 A (CT input)
• Double tariff (two-tariff metering)
• 2 pulse outputs for external counters or monitoring systems
• Optical port for connection to communication modules
• Modular width: 4 DIN modules

Applications

• Industrial and commercial energy measurement
• Distribution panels and switchboards
• Energy monitoring and sub-billing
• Integration with remote communication modules for data collection

Documentation

• Datasheet (PDF)
• User manual (PDF)
• Technical drawings (PDF/DWG)

Technical specifications

• Series: C70QPL
• Product code (SKU): C70QPL00504CAD
• Meter type: MID-certified active energy meter
• Phases: 3-phase
• Wiring: 3-4 wires (unbalanced systems)
• Nominal voltage: 400 V
• Current range: 1–5 A (CT input)
• Tariffs: Double tariff
• Outputs: 2 pulse outputs
• Communications: Optical port for dedicated communication modules
• Mounting: 4 DIN modules (modular design)
