Three-phase electric energy meter C70QTL080M4CAD
panel-mountDIN railpulse output

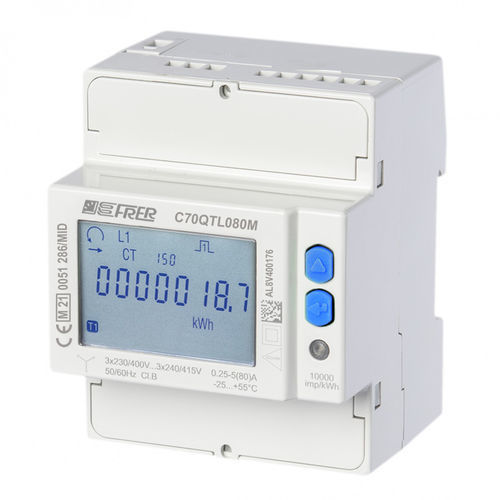

Three-phase electric energy meter - C70QTL080M4CAD - FRER - panel-mount / DIN rail / pulse output
Three-phase electric energy meter - C70QTL080M4CAD - FRER - panel-mount / DIN rail / pulse output
Three-phase electric energy meter - C70QTL080M4CAD - FRER - panel-mount / DIN rail / pulse output - image - 2
Three-phase electric energy meter - C70QTL080M4CAD - FRER - panel-mount / DIN rail / pulse output - image - 3
Three-phase electric energy meter - C70QTL080M4CAD - FRER - panel-mount / DIN rail / pulse output - image - 4
Three-phase electric energy meter - C70QTL080M4CAD - FRER - panel-mount / DIN rail / pulse output - image - 5
Add to favorites
Compare this product
Go to the FRER website for more information

Characteristics

Type
three-phase
Assembly
panel-mount, DIN rail
Other characteristics
pulse output, MID certified, RS-485, with built-in communication, Modbus RTU, Modbus, multi tariff
Voltage

400 V

Primary current

80 A

Description

Product

  • MID energy meter model C70QTL080M4CAD for 3-phase 4-wire unbalanced systems.
  • Direct measurement up to 80 A, nominal voltage 400 V.
  • Built-in RS485 communication with Modbus RTU protocol; 1 pulse output; 2-tariff metering.
  • Form factor: 4 DIN modules for panel or DIN-rail mounting.


Key features

  • 3-phase 4-wire unbalanced configuration
  • Rated voltage: 400 V
  • Direct rated current: 80 A
  • Double tariff (two registers)
  • 1 pulse output for external logging or PLC
  • RS485 interface supporting Modbus RTU
  • Compact: occupies 4 DIN modules


Documentation available

  • Datasheet (PDF)
  • User manual (PDF)
  • Communication protocol documentation (PDF)
  • Software (protected access)
  • Technical drawings (PDF and DWG)


Technical specifications

  • Product type: MID energy meter
  • Phases: 3-phase
  • Wiring: 4-wire unbalanced
  • Rated voltage: 400 V
  • Rated current: 80 A (direct)
  • Tariff registers: double tariff (2 registers)
  • Pulse outputs: 1 pulse output
  • Communication: RS485 with Modbus RTU protocol
  • Mounting/width: 4 DIN modules (panel or DIN-rail)
