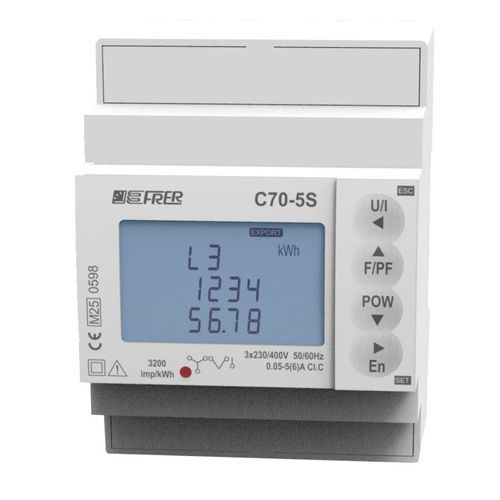

Three-phase electric energy meter C70QPL005S4CAD

DIN railpulse outputbi-directional

Brief description
Three-phase MID electricity meter for 3- and 4-wire networks. External CT insertion. Bidirectional active energy in Class C (EN50470-3). Multi-measure. 2 S0 pulse outputs and M-Bus communication. Extended operating temperature up to 70°C. 4-module DIN enclosure.

Available features

• Type: Three-phase 3- and 4-wire MID meter
• Nominal voltage: 400 V
• Current input: insertion on external CTs, compatibility /5A-1A
• Communication: M-Bus
• Pulse outputs: 2 S0 outputs
• Energy: Bidirectional active energy, Class C (EN50470-3)
• Multi-measure
• Operating temperature range: up to 70°C
• Enclosure: 4 DIN modules

Documentation available

• Datasheet
• User manual
• Communication protocols
• Technical drawing (PDF and DWG)

Features / technical specifications

• Model: C70QPL005S4CAD
• Standard: EN50470-3 (Class C)
• Configuration: Three-phase 3- and 4-wire
• Nominal voltage: 400 V
• Current input: insertion on external CTs, compatible /5A-1A
• Communication: M-Bus
• Pulse outputs: 2 × S0
• Energy direction: Bidirectional
• Operating temperature: up to 70°C
• Mounting: 4-module DIN enclosure
