Three-phase electric energy meter Contatore di Energia MID
DIN railModbuswith built-in communication

Three-phase electric energy meter - Contatore di Energia MID - FRER - DIN rail / Modbus / with built-in communication
Three-phase electric energy meter - Contatore di Energia MID - FRER - DIN rail / Modbus / with built-in communication
Three-phase electric energy meter - Contatore di Energia MID - FRER - DIN rail / Modbus / with built-in communication - image - 2
Three-phase electric energy meter - Contatore di Energia MID - FRER - DIN rail / Modbus / with built-in communication - image - 3
Three-phase electric energy meter - Contatore di Energia MID - FRER - DIN rail / Modbus / with built-in communication - image - 4
Three-phase electric energy meter - Contatore di Energia MID - FRER - DIN rail / Modbus / with built-in communication - image - 5
Add to favorites
Compare this product
Go to the FRER website for more information

Characteristics

Type
three-phase
Assembly
DIN rail
Other characteristics
Modbus, with built-in communication, pulse output, MID certified, multi tariff
Voltage

Max.: 400 V

Min.: 400 V

Primary current

Max.: 5 A

Min.: 1 A

Description

Product

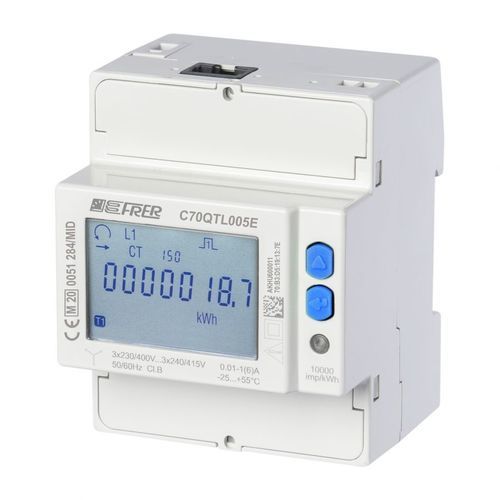

  • MID energy meter for three-phase, four-wire systems with CT input, built-in Ethernet and 4 DIN modules. Model: C70QTL005E4CAD


Main features
  • 3-phase 4-wire unbalanced system
  • Rated voltage: 400 V
  • CT input range: 1–5 A
  • Double tariff (two-tariff functionality)
  • 1 pulse output
  • Built-in Ethernet communication (Modbus TCP)
  • Form factor: 4 DIN modules


Available documentation
  • Data sheet
  • User manual
  • Communication protocols
  • Technical drawings (DWG and PDF)


Technical specifications
  • Type: MID energy meter
  • Model: C70QTL005E4CAD
  • Phases: 3-phase, 4-wire
  • System compatibility: Unbalanced 3-phase 4-wire
  • Voltage: 400 V (three-phase)
  • Current input (CT): 1–5 A
  • Tariff: Double tariff
  • Outputs: 1 pulse output
  • Communications: Ethernet (Modbus TCP)
  • Mounting/Size: 4 DIN modules
