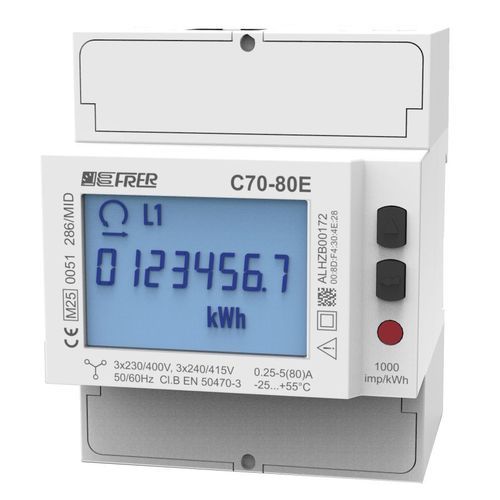

Three-phase electric energy meter C70QPL080E4CAD

DIN railwith built-in communicationMID certified

Type
Three-phase 4-wire MID energy meter, 400 V - direct up to 80 A, Ethernet

Description
MID electricity energy meter for three-phase 4-wire networks. Direct connection up to 80 A. Bidirectional, active energy class B (EN50470-3), multi-measure. 1 S0 pulse output and Ethernet communication. Integrated web server accessible from any browser without software installation for measurement visualization and recording. 4-module DIN housing.

Available downloads

• Datasheet (PDF)
• User manual (PDF)
• Communication protocols (PDF)
• Technical drawing (PDF)

Technical features / specifications

• Network: three-phase 4-wire
• Rated voltage: 400 V
• Direct connection current: up to 80 A
• Bidirectional
• Active energy: class B (EN50470-3)
• Functionality: multi-measure
• Outputs: 1 S0 pulse output
• Communication: Ethernet
• Integrated web server for visualization and recording via browser
• Housing: 4-module DIN
