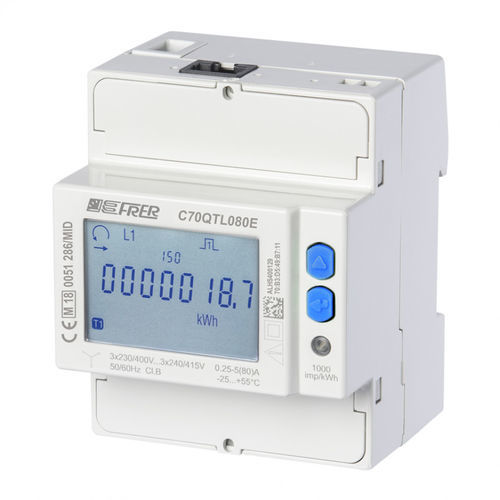

Three-phase electric energy meter C70QTL080E4CAD

DIN railwith built-in communicationModbus

Product
Commercial name
C70QTL080E4CAD

Short description
MID energy meter for direct connection up to 80 A. Measures 3-phase, 4-wire unbalanced systems. Modular design occupying 4 DIN modules. Double-tariff energy counting, one pulse output and built-in Ethernet communication (Modbus TCP).

Application / System
Designed for 3-phase, 4-wire unbalanced networks at 400 V; rated for direct connection up to 80 A.

Main features

• MID certified energy meter
• Direct connection up to 80 A
• 3-phase, 4-wire measurement for unbalanced systems
• Double-tariff energy counting
• One pulse output
• Built-in Ethernet communication with Modbus TCP protocol
• Modular design occupying 4 DIN modules

Available documents (titles only)

• Data sheet
• User manual
• Communication protocols
• PDF technical drawing

Technical specifications

• Model: C70QTL080E4CAD
• Type: MID energy meter
• Phases: 3-phase
• Wiring: 4-wire
• System type: Unbalanced
• Rated voltage: 400 V
• Rated current: 80 A (direct connection)
• Tariffs: Double tariff
• Outputs: 1 pulse output
• Communication: Ethernet (Modbus TCP) built-in
• Mechanical size: 4 DIN modules
