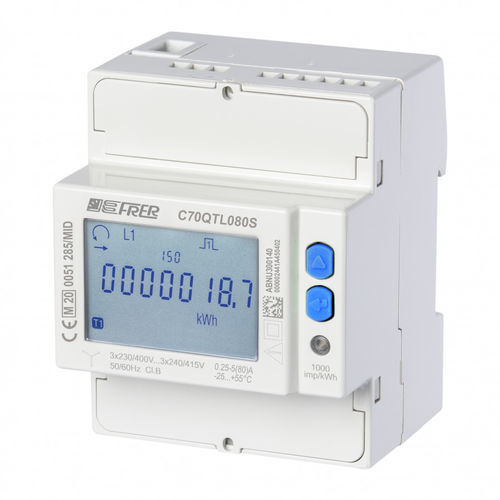

Three-phase electric energy meter C70QTL080S4CAD

DIN railwith built-in communicationM-Bus

Product
MID energy meter suitable for 3-phase 4-wire unbalanced systems, direct connection up to 80 A. Compact 4 DIN-module format with built-in M-Bus for remote reading and a pulse output for integration with monitoring systems.

Short description

• 3-phase, 4-wire unbalanced system 400 V, 80 A direct connection
• Double tariff (two-tariff) metering
• 1 pulse output for remote monitoring or external counters
• Integrated M-Bus communication for automated data collection
• Modular 4 DIN modules for DIN-rail installation

Available documents

• Data sheet (PDF)
• User manual (PDF)
• Communication protocols (PDF)
• Software (protected)

Technical drawings

• DWG technical drawing (zip)
• PDF technical drawing

Technical characteristics / specifications

• Model: C70QTL080S4CAD
• Type: MID energy meter
• Phases: 3-phase
• Wiring: 4 wires (direct)
• System: unbalanced
• Rated voltage: 400 V
• Maximum direct current: 80 A
• Tariffs: Double tariff
• Outputs: 1 pulse output
• Communication: Built-in M-Bus
• Module size: 4 DIN modules
